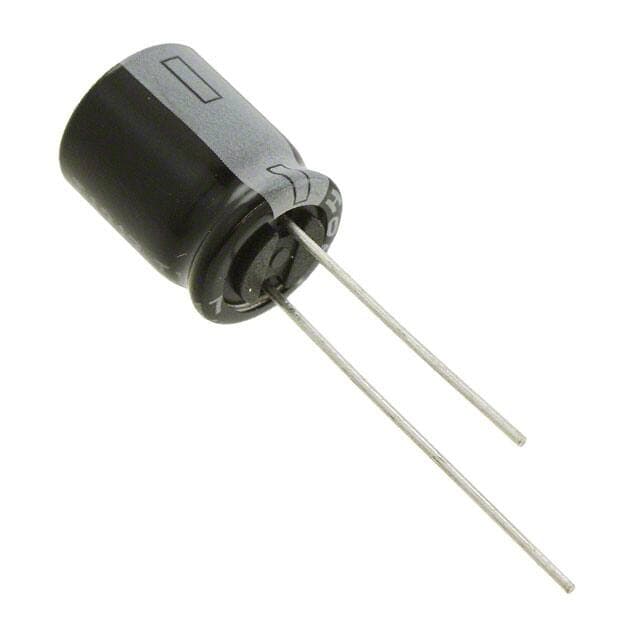

Rubycon 35ZLH330MEFC10X12.5

Manufacturer No:

35ZLH330MEFC10X12.5

Manufacturer:

Rubycon

Package:

Radial, Can

Description:

ZLH 330?F Capacitor ±20% Bulk Through Hole 1.33A 0.394Dia 10.00mm -40°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

35ZLH330MEFC10X12.5 information

Rubycon 35ZLH330MEFC10X12.5 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 35ZLH330MEFC10X12.5.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
ZLH

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

JESD-609 Code
e3

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Applications
General Purpose

Capacitance
330?F

Voltage - Rated DC
35V

Lead Pitch
5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Voltage
35V

Lifetime @ Temp
10000 Hrs @ 105°C

Leakage Current
3?A

Ripple Current
1.33A

Polarization
Polar

Life (Hours)
10000 hours

Impedance
39mOhm

Ripple Current @ Low Frequency
731.5mA @ 120Hz

Ripple Current @ High Frequency
1.33A @ 100kHz

Ripple Current (AC)
1.33A

Diameter
10mm

Height
12.5mm

Height Seated (Max)
0.551 14.00mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Rubycon 35ZLH330MEFC10X12.5.

35ZLH330MEFC10X12.5 Overview

In terms of ripple current, it is 1.33A @ 100kHz at full charge.When the charge is lowest, the ripple current is 731.5mA @ 120Hz.Sitting height (Max) should not exceed 0.551 14.00mm.Voltage - Rated DC of 35V is required to operate this capacitor.The capacitor operates at a voltage of 35V volts.It is recommended to maintain the operating temperature at -40°C~105°C in order to maximize efficiency.

35ZLH330MEFC10X12.5 Features

the ripple current is 1.33A @ 100kHz.
the ripple current is 731.5mA @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -40°C~105°C

35ZLH330MEFC10X12.5 Applications

There are a lot of Rubycon
35ZLH330MEFC10X12.5 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
