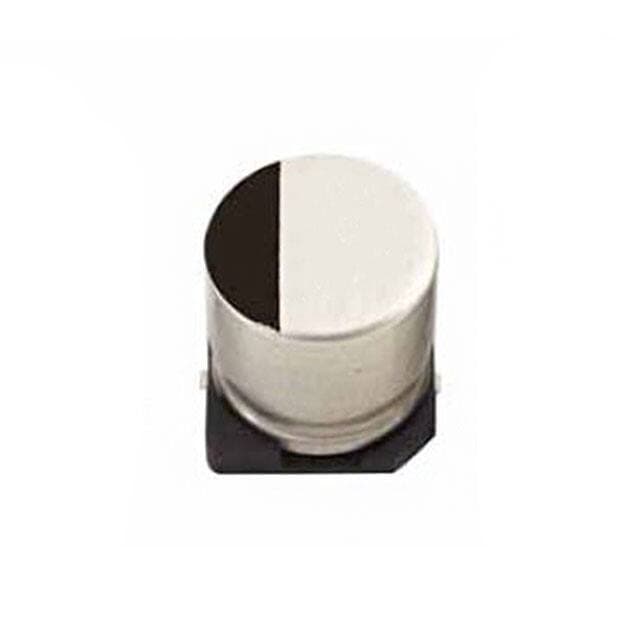

rubycon 35TRV220M10X10.5
rubycon 35TRV220M10X10.5

rubycon 35TRV220M10X10.5

Manufacturer No:

35TRV220M10X10.5

Manufacturer:

rubycon

Package:

Radial, Can - SMD

Description:

TRV 220?F Capacitor ±20% Tape & Reel (TR) Surface Mount 850mA 0.394Dia 10.00mm -40°C~105°C Polar Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

35TRV220M10X10.5 information

rubycon 35TRV220M10X10.5 technical specifications, attributes, parameters and parts with similar specifications to rubycon 35TRV220M10X10.5.

  • Type
  • Parameter
  • Factory Lead Time
  • 18 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Dielectric Material
  • ALUMINUM
  • Surface Mount Land Size
  • 0.406Lx0.406W 10.30mmx10.30mm
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • TRV
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Applications
  • General Purpose
  • Capacitance
  • 220?F
  • Voltage - Rated DC
  • 35V
  • Packing Method
  • TR
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 120mOhm
  • Size Code
  • 4141
  • Lifetime @ Temp
  • 8000 Hrs @ 105°C
  • Leakage Current
  • 3?A
  • Polarization
  • Polar
  • Life (Hours)
  • 8000 hours
  • Impedance
  • 120mOhm
  • Ripple Current @ Low Frequency
  • 510mA @ 120Hz
  • Ripple Current @ High Frequency
  • 850mA @ 100kHz
  • Dissipation Factor
  • 0.14 %
  • Ripple Current (AC)
  • 850mA
  • Diameter
  • 10mm
  • Height
  • 10.5mm
  • Height Seated (Max)
  • 0.413 10.50mm
  • Length
  • 10.3mm
  • Width
  • 10.3mm
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for rubycon 35TRV220M10X10.5.

Datasheets:

35TRV220M10X10.5 Overview


As far as the ripple current is concerned, it is 850mA @ 100kHz at full charge.The ESR (Equivalent Series Resistance) of 120mOhm needs to be provided to fully play its function.As far as the ripple current is concerned, it is 510mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.413 10.50mm.It operates from a 0.14 % dissipation factor.This capacitor operates from a voltage - Rated DC of 35V.The operating temperature should be maintained at -40°C~105°C for high efficiency.

35TRV220M10X10.5 Features


the ripple current is 850mA @ 100kHz.
the ripple current is 510mA @ 120Hz.
a dissipation factor of 0.14 %
voltage - Rated DC of 35V
an operating temperature of -40°C~105°C


35TRV220M10X10.5 Applications


There are a lot of Rubycon
35TRV220M10X10.5 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
