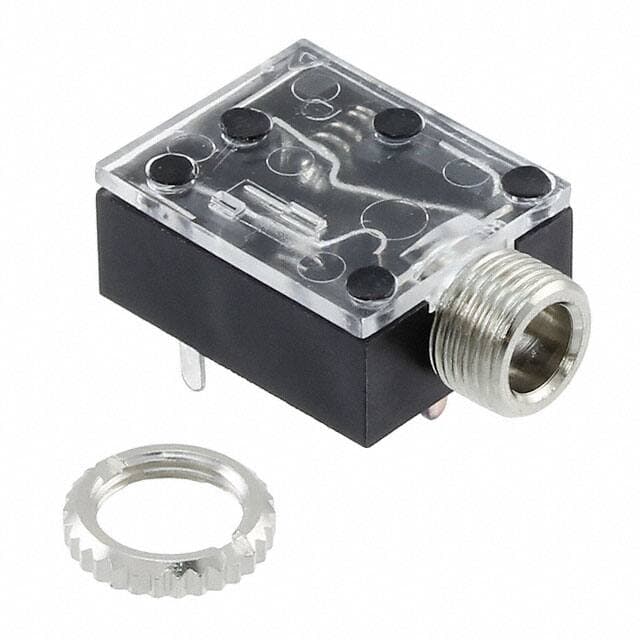

35RAPC4BH3 information

Switchcraft Inc. 35RAPC4BH3 technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. 35RAPC4BH3.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Panel Mount, Through Hole, Right Angle
  • Housing Material
  • Polybutylene Terephthalate (PBT)
  • Weight
  • 1.700008g
  • Body Material
  • Brass
  • Contact Material - Plating
  • Silver
  • Packaging
  • Bulk
  • Series
  • 35
  • Published
  • 2004
  • JESD-609 Code
  • e4
  • Feature
  • Mounting Hardware, Thread Lock
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 5
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Phone Jack
  • Color
  • Black
  • Gender
  • Female
  • Voltage - Rated
  • 500V
  • MIL Conformance
  • NO
  • IEC Conformance
  • NO
  • Option
  • GENERAL PURPOSE
  • Orientation
  • Right Angle
  • Shielding
  • Unshielded
  • Depth
  • 17.5mm
  • Number of Contacts
  • 3
  • Number of Ports
  • 1
  • Cable Length
  • 17.5mm
  • Number of Poles
  • 3
  • Number of Positions/Contacts
  • 3 Conductors, 5 Contacts
  • Includes
  • 3 pcs - 1 Connector, 1 Nut, 1 Washer
  • Internal Switch(s)
  • Two Switches
  • Body Color
  • Silver, Black
  • Industry Recognized Mating Diameter
  • 3.50mm (0.141, 1/8, Mini Plug) - Headphone
  • Actual Diameter
  • 0.142 (3.60mm)
  • Signal Lines
  • Stereo (3 Conductor, TRS)
  • Height
  • 6.1214mm
  • Length
  • 11.5mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Switchcraft Inc. 35RAPC4BH3.

Datasheets:

TechnicalDrawing:

Description: The Switchcraft 35RAPC4BH3 is a 3.5mm right-angle stereo jack audio connector. It features a 4-position, 4-conductor design with a black housing and gold-plated contacts. It is designed for use in a variety of audio applications, including headphones, microphones, and other audio equipment.
