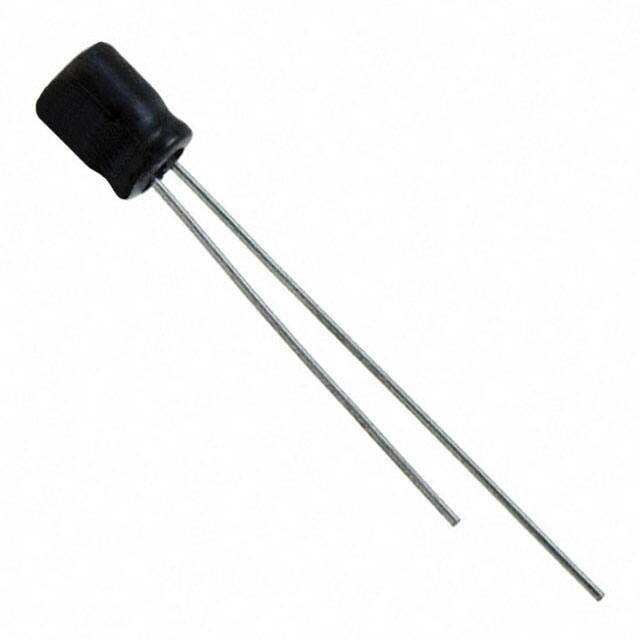

rubycon 35NW74.7MEFC5X7

Manufacturer No:

35NW74.7MEFC5X7

Manufacturer:

rubycon

Package:

Radial, Can

Description:

NW7 4.7?F Capacitor ±20% Bulk Through Hole 22mA 0.197Dia 5.00mm -40°C~85°C Bi-Polar 2.0066mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

35NW74.7MEFC5X7 information

rubycon 35NW74.7MEFC5X7 technical specifications, attributes, parameters and parts with similar specifications to rubycon 35NW74.7MEFC5X7.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
NW7

Size / Dimension
0.197Dia 5.00mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
General Purpose

Capacitance
4.7?F

Voltage - Rated DC
35V

Lead Pitch
2.0066mm

Lead Spacing
0.079 2.00mm

Lifetime @ Temp
1000 Hrs @ 85°C

Ripple Current
22mA

Polarization
Bi-Polar

Life (Hours)
1000 hours

Ripple Current @ Low Frequency
22mA @ 120Hz

Ripple Current @ High Frequency
33mA @ 10kHz

Diameter
5mm

Height
7mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for rubycon 35NW74.7MEFC5X7.

35NW74.7MEFC5X7 Overview

Ripple current at full charge is 33mA @ 10kHz.It is 22mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.315 8.00mm.Voltage - Rated DC - is 35V.It is recommended that the operating temperature be kept at -40°C~85°C to achieve high efficiency.

35NW74.7MEFC5X7 Features

the ripple current is 33mA @ 10kHz.
the ripple current is 22mA @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -40°C~85°C

35NW74.7MEFC5X7 Applications

There are a lot of Rubycon
35NW74.7MEFC5X7 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
