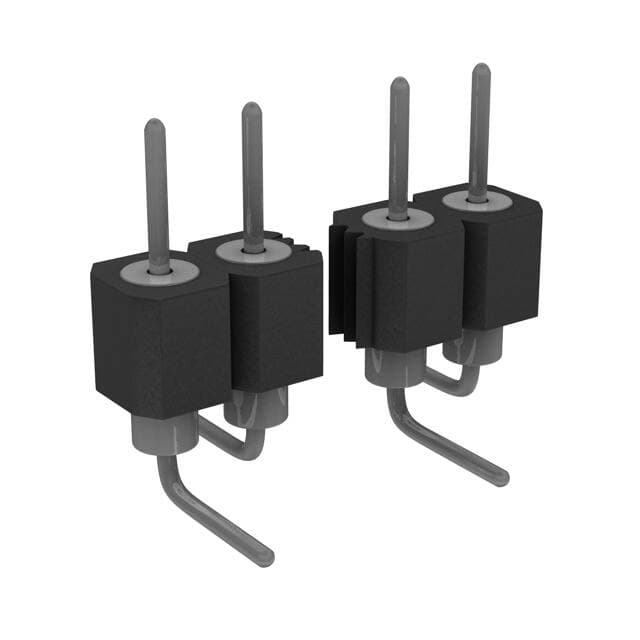

Preci-Dip 350-80-154-00-106101

Manufacturer No:

350-80-154-00-106101

Manufacturer:

Package:

Description:

350 Series 1-Row Header Solder Brass Bulk Surface Mount Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled 54-Position Board to Board 0.116 2.95mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

350-80-154-00-106101 information

Preci-Dip 350-80-154-00-106101 technical specifications, attributes, parameters and parts with similar specifications to Preci-Dip 350-80-154-00-106101.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Brass

Mount
Surface Mount

Mounting Type
Surface Mount

Contact Shape
Circular

Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Operating Temperature
-55°C~125°C

Packaging
Bulk

Series
350

Published
2012

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
54

Number of Rows
1

Voltage - Rated
150VDC

HTS Code
8536.69.40.40

Fastening Type
Push-Pull

Contact Finish - Mating
Tin

MIL Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3A

Total Number of Contacts
54

Insulation Height
0.116 2.95mm

Style
Board to Board

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Body Length or Diameter
5.4 inch

Shrouding
Unshrouded

Contact Length - Mating
0.141 3.60mm

UL Flammability Code
94V-0

Durability
500 Cycles

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Preci-Dip 350-80-154-00-106101.

Datasheets:

precidip-3501016400106101-datasheets-2378.pdf

Environmental Information:

precidip-9991921006-environmentalinformation-0838.pdf

350-80-154-00-106101 Overview

This product is packaged in a Header box.Surface Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the 350 Series.By Surface Mount, the part is mounted.Operating temperature is set to -55°C~125°C.

350-80-154-00-106101 Features

350 series

350-80-154-00-106101 Applications

There are a lot of Preci-Dip
350-80-154-00-106101 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
