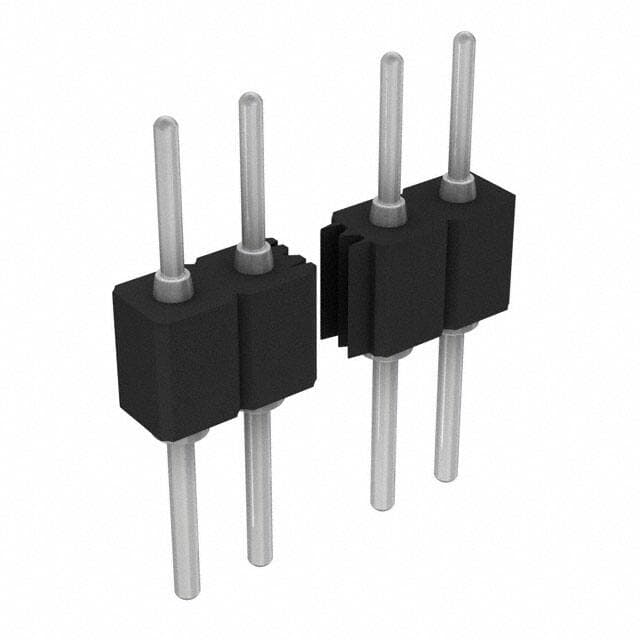

Preci-Dip 350-80-107-00-001101

Manufacturer No:

350-80-107-00-001101

Manufacturer:

Package:

Description:

350 Series 1-Row Header Solder Brass Bulk Through Hole Tin Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled 7-Position Board to Board 0.110 2.79mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

350-80-107-00-001101 information

Preci-Dip 350-80-107-00-001101 technical specifications, attributes, parameters and parts with similar specifications to Preci-Dip 350-80-107-00-001101.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Brass

Mount
Through Hole

Mounting Type
Through Hole

Contact Shape
Circular

Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Housing Material
Polychlorinated

Operating Temperature
-55°C~125°C

Packaging
Bulk

Series
350

Published
2012

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
7

Number of Rows
1

Voltage - Rated
150VDC

HTS Code
8536.69.40.40

Fastening Type
Push-Pull

Contact Finish - Mating
Tin

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Orientation
Straight

Depth
2.54mm

Insulation Height
0.110 2.79mm

Style
Board to Board

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Contact Length - Post
0.164 4.17mm

Shrouding
Unshrouded

Number Of PCB Rows
1

Contact Length - Mating
0.156 3.96mm

PCB Contact Pattern
RECTANGULAR

UL Flammability Code
94V-0

Housing Color
Black

Rated Current (Signal)
3A

Download datasheets and manufacturer documentation for Preci-Dip 350-80-107-00-001101.

Datasheets:

precidip-3501010300001101-datasheets-8584.pdf

Environmental Information:

precidip-9991921006-environmentalinformation-0838.pdf

350-80-107-00-001101 Overview

Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the 350 Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.

350-80-107-00-001101 Features

350 series

350-80-107-00-001101 Applications

There are a lot of Preci-Dip
350-80-107-00-001101 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
