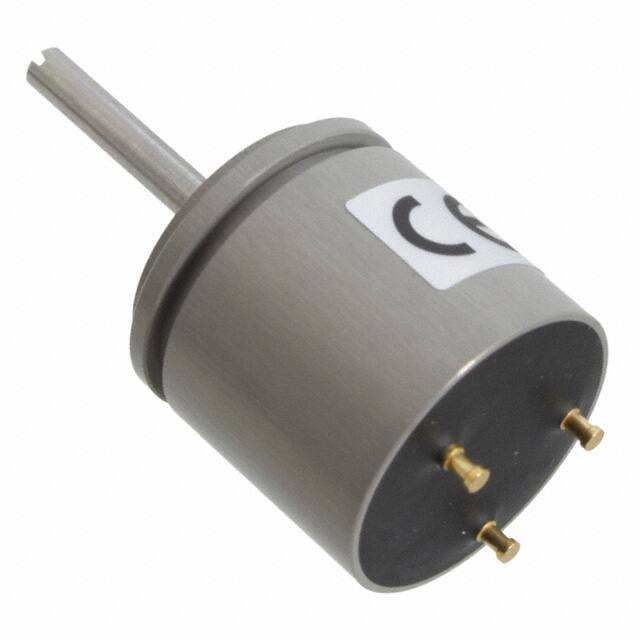

VISHAY 34THEB1BTA2S22

Manufacturer No:

34THEB1BTA2S22

Manufacturer:

VISHAY

Package:

Module

Description:

For Measuring Rotary Position Solder Turret Slotted Shaft -40°C~85°C Analog Voltage 5V ±1% 0° ~ 3600°, Continuous Clockwise Increase Hall Effect Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

34THEB1BTA2S22 information

VISHAY 34THEB1BTA2S22 technical specifications, attributes, parameters and parts with similar specifications to VISHAY 34THEB1BTA2S22.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Bushing, Panel

Mounting Type
Panel Mount

Package / Case
Module

Number of Pins
3

Operating Temperature
-40°C~85°C

Packaging
Bulk

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Type
Hall Effect

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Technology
Hall Effect

Voltage - Supply
5V

Current Rating
16mA

Output
Analog Voltage

Termination Style
Solder Turret

Actuator Type
Slotted Shaft

Output Voltage
3.3V

Operating Supply Voltage
5V

Number of Turns
10

Min Output Voltage
3.3V

Sensing Method
Hall Effect

Min Supply Voltage (DC)
5V

For Measuring
Rotary Position

Output Signal
Clockwise Increase

Rotation Angle - Electrical, Mechanical
0° ~ 3600°, Continuous

Length
22.1mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Ratings
IP50

Download datasheets and manufacturer documentation for VISHAY 34THEB1BTA2S22.

Datasheets:

vishayspectrol-34theb1bwe2s22-datasheets-0035.pdf

RohsStatement:

vishaydale-imc0402rk47nj-rohsstatement-4552.pdf

34THEB1BTA2S22 Overview

To protect the linear position measuring sensors, they are packaged in Module packages. The electronic component is packaged in the Bulk. In order to ensure that the angle position measuring sensors perform normally, the minimum operating temperature can be set to -40°C. A position measuring sensor for angle cannot be operated with a temperature exceeding 85°C. There are 3 pins on the linear position measuring sensor. The supply voltage applied by the linear position measuring sensor should be 5V when it operates. However, the linear position measuring sensor will not supply a voltage below 5V in the DC circuit. There cannot be a voltage lower than 3.3V released by the linear position measuring sensor. In order for this angle position measuring sensor to function correctly, it must release 3.3V voltage.

34THEB1BTA2S22 Features

Supply Voltage: 5V
Operating Temperature: -40°C~85°C
Mount: Bushing, Panel
Package / Case: Module
Mounting Type: Panel Mount
3 Pins

34THEB1BTA2S22 Applications

There are a lot of Vishay Spectrol
34THEB1BTA2S22 Angle & Linear Position Measuring Sensors applications.

Control elements
Electric meters (anti tampering)
Volume control on audio equipment
Motion controllers
Dishwasher control systems
Automotive temperature range
Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor
