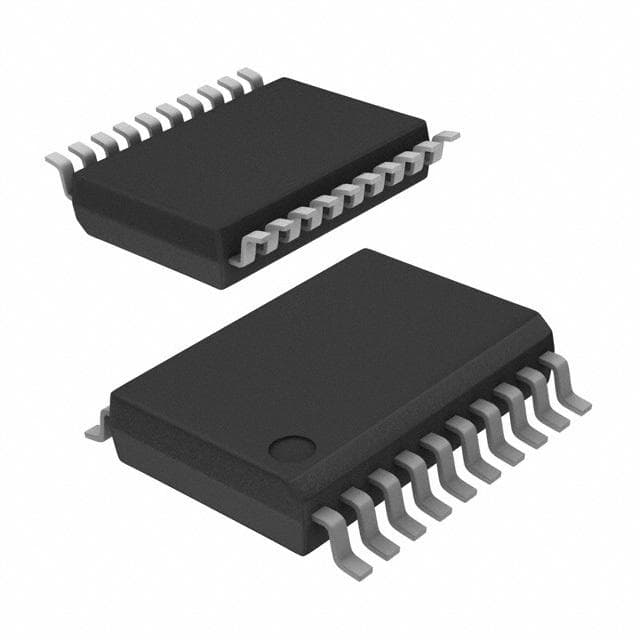

Renesas 345RIPLF

Manufacturer No:

345RIPLF

Manufacturer:

Renesas

Package:

QSOP

Description:

3.3V 200MHz Clock Generators 20 Pins QSOP 20 Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

345RIPLF information

Renesas 345RIPLF technical specifications, attributes, parameters and parts with similar specifications to Renesas 345RIPLF.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
QSOP

Number of Pins
20

Published
1999

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
20

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Number of Elements
3

Number of Circuits
1

Max Supply Voltage
3.45V

Min Supply Voltage
3.15V

Frequency (Max)
200MHz

Input
Clock

Primary Clock/Crystal Frequency-Nom
50MHz

Length
8.7mm

Width
3.8mm

Thickness
1.47mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 345RIPLF.

Datasheets:

integrateddevicetechnology-345riplf-datasheets-0254.pdf

345RIPLF Overview

As part of the QSOP package, this clock generator is embedded. This clock generator ic can sustain 260 degrees of temperature during reflowing. There are 20 terminations found in this file. To operate this time clock generator, 3.3V voltage should be applied. In this clock generator, Clock is used as the input to the clock. For a full understanding of the electronic part's performance, 1 circuits are implemented. An up to 200MHz frequency is provided by this clock-based RF synthesizer. It is a 20-bit clock PLL designed specifically for microprocessors. There are 20 pins on the frequency generators that are available for use. There are -40°C operations that can be performed on this clock generator, which has impressive low-temperature performance. At 85°C, this RF synthesizer remains functional despite reduced performance. Supply voltage 3.3V is what clock generator can handle. There is no way that a voltage higher than 3.45V can be supplied to this clock generator. Powered by 3.15V, this clock generator has the lowest supply voltage limit. The clock PLL here has 3 elements and has a very low jitter performance.

345RIPLF Features

Available in the QSOP
Supply voltage of 3.3V
Operating supply voltage of 3.3V

345RIPLF Applications

There are a lot of Integrated Device Technology (IDT)
345RIPLF Clock Generators applications.

Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
Infotainment systems
