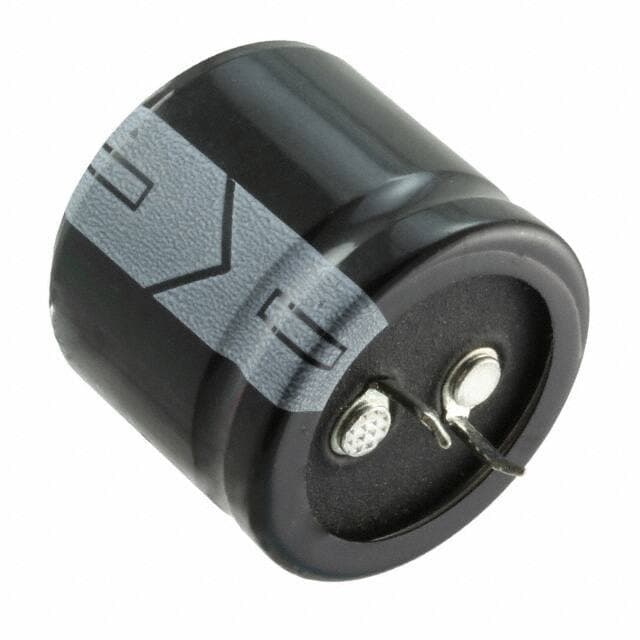

Illinois Capacitor 338LBA035M2BC
Illinois Capacitor 338LBA035M2BC

Illinois Capacitor 338LBA035M2BC

Manufacturer No:

338LBA035M2BC

Manufacturer:

Illinois Capacitor

Package:

Radial, Can - Snap-In

Description:

LBA 3300?F Capacitor ±20% Bulk Through Hole 2.2A 0.866Dia 22.00mm -40°C~85°C Polar 10.0076mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

338LBA035M2BC information

Illinois Capacitor 338LBA035M2BC technical specifications, attributes, parameters and parts with similar specifications to Illinois Capacitor 338LBA035M2BC.

  • Type
  • Parameter
  • Factory Lead Time
  • 22 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Number of Pins
  • 2
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • LBA
  • Published
  • 2006
  • Size / Dimension
  • 0.866Dia 22.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Snap in
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 3300?F
  • Voltage - Rated DC
  • 35V
  • Lead Pitch
  • 10.0076mm
  • ESR (Equivalent Series Resistance)
  • 200.95mOhm @ 120Hz
  • Lead Spacing
  • 0.394 10.00mm
  • Lifetime @ Temp
  • 2000 Hrs @ 85°C
  • Ripple Current
  • 2.2A
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ Low Frequency
  • 2.2A @ 120Hz
  • Ripple Current @ High Frequency
  • 2.75A @ 10kHz
  • Custom Capabilities
  • Capacitance Tolerance
  • Diameter
  • 22mm
  • Height
  • 25mm
  • Height Seated (Max)
  • 1.063 27.00mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Illinois Capacitor 338LBA035M2BC.

Datasheets:

Environmental Information:

338LBA035M2BC Overview


Full charge results in a ripple current of 2.75A @ 10kHz.200.95mOhm @ 120Hz must have the ESR (Equivalent Series Resistance) to function properly.The ripple current at the lowest charge is 2.2A @ 120Hz.Keeping the maximum height of the seated person (Max) below 1.063 27.00mm is recommended.Rated DC voltage is 35V for this capacitor.High efficiency requires an operating temperature of -40°C~85°C.

338LBA035M2BC Features


the ripple current is 2.75A @ 10kHz.
the ripple current is 2.2A @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -40°C~85°C


338LBA035M2BC Applications


There are a lot of Illinois Capacitor
338LBA035M2BC applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
