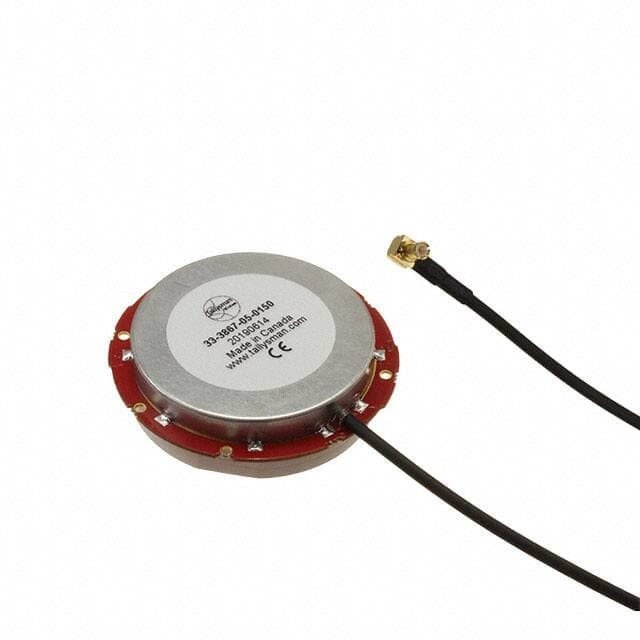

Tallysman Wireless Inc. 33-3867-05-0150

Manufacturer No:

33-3867-05-0150

Manufacturer:

Package:

Description:

6 Bands Ceramic Patch UHF 1GHz~2GHz Chassis Mount MCX Male 1.2276GHz 1.248GHz 1.561GHz 1.575GHz 1.589GHz 1.602GHz 3dBi, 4.5dBi 0.319 8.10mm Beidou, Galileo, GLONASS, GPS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

33-3867-05-0150 information

Tallysman Wireless Inc. 33-3867-05-0150 technical specifications, attributes, parameters and parts with similar specifications to Tallysman Wireless Inc. 33-3867-05-0150.

Type
Parameter

Factory Lead Time
4 Weeks

Mounting Type
Chassis Mount

Series
Accutenna®

Feature
Cable - 150mm, LNA

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
MCX Male

Applications
Beidou, Galileo, GLONASS, GPS

Gain
3dBi, 4.5dBi

Frequency Range
1.213GHz~1.261GHz 1.557GHz~1.606GHz

RF Family/Standard
Navigation

Antenna Type
Ceramic Patch

VSWR
1.8

Number of Bands
6

Frequency Group
UHF 1GHz~2GHz

Frequency (Center/Band)
1.2276GHz 1.248GHz 1.561GHz 1.575GHz 1.589GHz 1.602GHz

Height (Max)
0.319 8.10mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Tallysman Wireless Inc. 33-3867-05-0150.

Datasheets:

tallysmanwirelessinc-333867050150-datasheets-8169.pdf

33-3867-05-0150 Overview

A generalization of RF Antennas can be made using Chassis Mount.There are several Antenna RFs in the Accutenna® series.

33-3867-05-0150 Features

With Chassis Mount
Accutenna® series

33-3867-05-0150 Applications

There are a lot of Tallysman Wireless Inc.
33-3867-05-0150 RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
