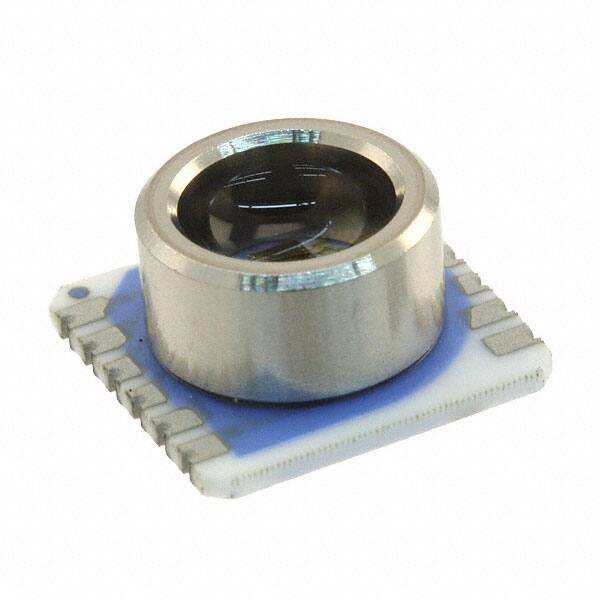

TE Connectivity 325534009-00

Manufacturer No:

325534009-00

Manufacturer:

TE Connectivity

Package:

8-SMD Module

Description:

Absolute Pressure Sensor SPI -40°C~125°C 0.15PSI ~ 15.95PSI (1kPa ~ 110kPa) No Port 16 b 2.2V~3.6V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

325534009-00 information

TE Connectivity 325534009-00 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 325534009-00.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 day ago)

Factory Lead Time
10 Weeks

Mount
Surface Mount

Package / Case
8-SMD Module

Number of Pins
12

Operating Temperature
-40°C~125°C

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Applications
Board Mount

Voltage - Rated DC
3.6V

Voltage - Supply
2.2V~3.6V

Output
16 b

Termination Style
SMD (SMT) Tab

Output Voltage
3.6V

Output Type
SPI

Operating Supply Voltage
3V

Operating Pressure
0.15PSI ~ 15.95PSI (1kPa ~ 110kPa)

Pressure Type
Absolute

Port Style
No Port

Maximum Pressure
145.04PSI (1000kPa)

Radiation Hardening
No

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TE Connectivity 325534009-00.

325534009-00 Overview

The Transducer 8-SMD Module is included in the package for convenience. It is recommended to set the temperature of the transducers to -40°C~125°C to ensure reliable operation. The transducers are capable of operating well at 2.2V~3.6V supply voltage. 125°C is the maximum operating temperature of the transducers. It is not possible for the transducers to operate at temperatures lower than -40°C. In order for the transducers to function properly, the 12 pins must be connected. This device must work at 3.6V voltage from the transducers. In order to keep the transducers at the temperature they are rated for, the DC voltage needs to be 3.6V.

325534009-00 Features

Moisture Sensitivity Level: 1 (Unlimited)
Package / Case: 8-SMD Module
Operating Temperature: -40°C~125°C
12 Pins
Operating Pressure: 0.15PSI ~ 15.95PSI (1kPa ~ 110kPa)
Operating Supply Voltage: 3V

325534009-00 Applications

There are a lot of TE Connectivity Measurement Specialties
325534009-00 Transducers applications.

Weather Forecasting
Hydrogen Storage
Refrigerant pressure monitoring in HVAC/R systems
Dry air system pressure, process controls and automation
Dry air system monitoring
Hydraulic, brake, and engine oil fluid pressure monitoring
Air brake pressure monitoring
Vertical velocity indication (e.g. rise/sink speed)
Internet of things
Enhancement of GPS navigation
