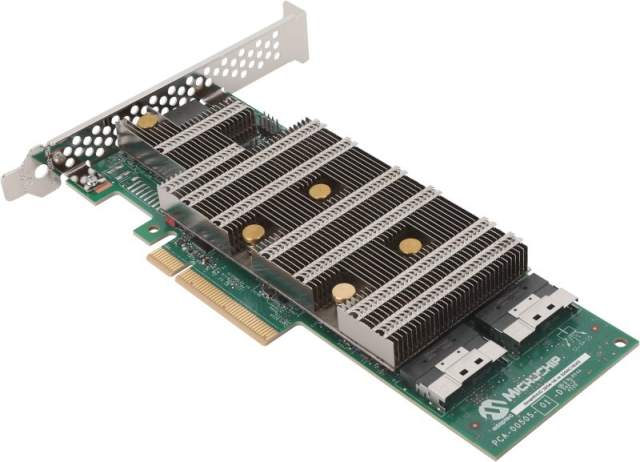

Microchip 3254C16IX2S
Manufacturer No:
3254C16IX2S
Manufacturer:
Package:
Description:
24G PCIe Gen 4 SAS/SATA/NVMe Trimode RAID Adapter
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
3254C16IX2S Information
Microchip 3254C16IX2S technical specifications, attributes, parameters and parts with similar specifications to Microchip 3254C16IX2S.
- Type
- Parameter
- CBE (Controller Based Encryption)
- Yes
- Cache Memory
- 4 GB DDR4/3200 MHz
- Cache Protection
- ASCM35F (included)
- Form Factor
- Low-profile, MD2
- Generation
- PCIe Gen 4 / SAS-4
- Physical Dimensions (Inch/mm)
- 2.535\" H x 6.6\" L (64 mm x 167 mm)
- Port Count Supported Devices
- SATA, SAS-4, NVMe
- Product Type
- RAID Adapter
- SKU
- 3254C16IX2S
- maxCache
- 4.0
- Type
- Parameter
- Internal Ports
- 16
- External Ports
- 0
- Bus Type
- PCIe Gen 4
- Lanes
- 8
- Multimode
- yes
- Product Description
- 24Gbps SAS/SATA/NVMe PCIe Gen 4 Smart Storage Products - SmartRAID Adapters
- Basic RAID
- 0,1,10
- Advanced RAID
- 5,6,50,60
- PCIe Lanes
- x8
- Product Name
- SmartRAID 3254-16i
Download datasheets and manufacturer documentation for Microchip 3254C16IX2S.
The Adaptec® SmartRAID 3254-16i /e RAID adapter offers maximum performance with SAS/SATA/NVMe tri-mode functionality for server OEM, storage systems, data center, and enterprise customers than previous generations.
Built on Microchip's proven 5th generation SmartROC 3200 storage controller, the SmartRAID 3254-16i /e supports a x8 PCIe Gen 4 host interface with 16 media facing port variants for internal Tri-mode connectivity. New technologies available with the SmartRAID 3200 family includes DirectPath, which integrates a PCIe switch for the industry's lowest latency and highest bandwidth NVMe solution and Microchip's Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled through-put. Native HBA modes for all media types are also supported, which offers the lowest latency for memory-based PCIe storage.
SmartRAID 3200 adapters include Microchip’s Trusted Platform support which delivers a new level of compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project. For additional layers of security, Microchip has now expanded on its unique Adaptec maxCrypto Controller-Based Encryption (CBE) solution to support SAS, SATA, and now NVMe media, and also supports Self-Encrypting Drive (SED) management software.
The SmartRAID 3200 RAID adapters also support both Intel® Virtual Pin Port (VPP) for intelligent backplane management and SFF's Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility for system integrators. Also supported are industry leading storage management including standards-based Platform Level Data Model (PLDM)/Redfish® Device Enablement (RDE) to simplify integration and and Microchip's ChipLink Diagnostic Tool with signal integrity analysis and context sensitive documentation to accelerate time to market.
Visit Adaptec Support for firmware, drivers, and documentation.
