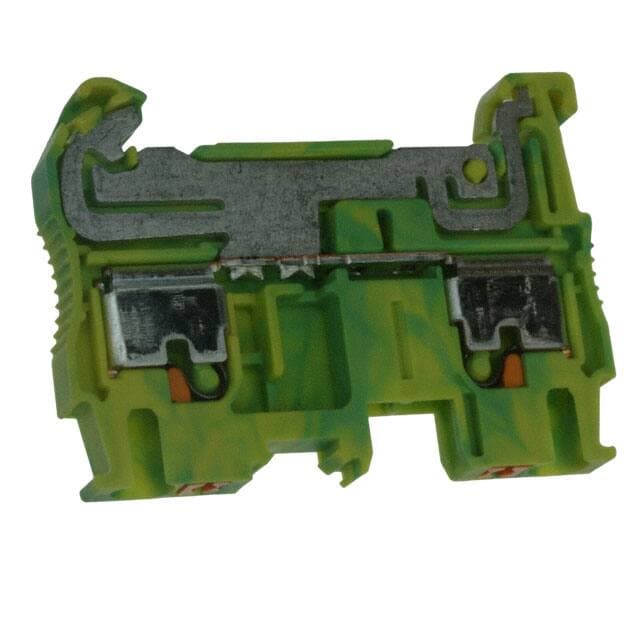

Phoenix 3209536
Manufacturer No:
3209536
Manufacturer:
Package:
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
3209536 information
Phoenix 3209536 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 3209536.
- Type
- Parameter
- Factory Lead Time
- 7 Weeks
- Housing Material
- Polyamide
- Material - Insulation
- Polyamide (PA), Nylon
- Series
- CLIPLINE PT
- Published
- 2010
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- ECCN Code
- EAR99
- Connector Type
- Push-In
- Type
- Ground, Earth
- Color
- Green, Yellow
- Number of Rows
- 1
- Additional Feature
- STANDARD: UL 94V-0, PA
- HTS Code
- 8536.69.40.40
- Termination Style
- Push In, Spring
- Approval Agency
- CB, CSA, UL, VDE
- Number of Levels
- 1
- Wire Gauge (Max)
- 26 AWG
- Wire Gauge (Min)
- 26 AWG
- Wire/Cable Gauge
- 12 AWG
- Number of Poles
- 2
- Number of Decks
- 1
- Wire Gauge or Range - AWG
- 12-26 AWG
- Safety Approval
- UL; CSA
- Wire Gauge or Range - mm²
- 0.14-4mm2
- Stripping Length
- 10mm
- Height
- 44mm
- Length
- 48.5mm
- Width
- 5.2mm
- Material Flammability Rating
- UL94 V-0
- RoHS Status
- RoHS Compliant
- Flammability Rating
- UL94 V-0
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Phoenix 3209536.
Datasheets:
PCN Design/Specification:
Features:
- Made of high-quality, flame-retardant plastic material
- Spring-cage connection system for easy and secure wiring
- Suitable for use with 12-26 AWG wire
- Rated for a maximum current of 24A
- DIN rail-mounted for easy installation
Applications: The Phoenix Contact Terminal Block Ground 12-26AWG (3209536) is suitable for use in a variety of electrical and electronic applications, including industrial control systems, power distribution systems, and lighting systems. It is also suitable for use in automotive, marine, and other harsh environments.
