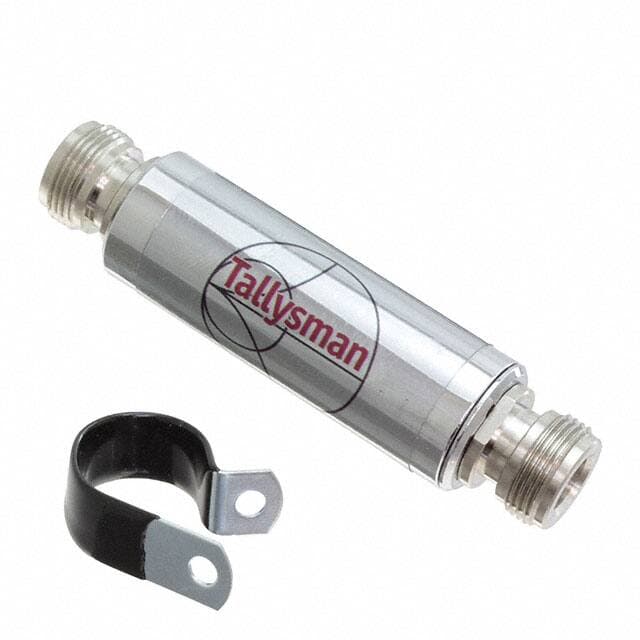

Tallysman Wireless Inc. 32-0141-14

Manufacturer No:

32-0141-14

Manufacturer:

Tallysman Wireless Inc.

Package:

N-Type In-Line Module

Description:

42dB Galileo, GLONASS, GPS, SBAS NARROW BAND LOW POWER 1.2GHz~1.8GHz 5V~10V P1dB:7dBm 2dB Connector Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

32-0141-14 information

Tallysman Wireless Inc. 32-0141-14 technical specifications, attributes, parameters and parts with similar specifications to Tallysman Wireless Inc. 32-0141-14.

Type
Parameter

Factory Lead Time
4 Weeks

Mounting Type
Connector Mount

Package / Case
N-Type In-Line Module

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Terminal Finish
Nickel (Ni)

Voltage - Supply
5V~10V

Frequency
1.2GHz~1.8GHz

Current - Supply
75mA

Gain
42dB

RF/Microwave Device Type
NARROW BAND LOW POWER

RF Type
Galileo, GLONASS, GPS, SBAS

Noise Figure
2dB

P1dB
7dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Tallysman Wireless Inc. 32-0141-14.

Datasheets:

tallysmanwirelessinc-32014101-datasheets-4605.pdf

32-0141-14 Overview

The RF amplifier is a cost-effective NARROW BAND LOW POWER RF/Microwave device.The RF amplifier has type Galileo, GLONASS, GPS, SBAS RF.The RF power Amplifier ships overseas conveniently packed in N-Type In-Line Module.In order to mount Amplifiers RF, it is recommended to follow the Connector Mount axis.Amplifiers RFs with 5V~10V voltage capabilities can be used.For its operation, 75mA is the supply RF Amplifiers' current.

32-0141-14 Features

NARROW BAND LOW POWER RF/Microwave Amplifier
RF Type Galileo, GLONASS, GPS, SBAS
5V~10V voltage
75mA current

32-0141-14 Applications

There are a lot of Tallysman Wireless Inc.
32-0141-14 RF Amplifiers applications.

Ultra-Mobile PC
Recreational
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
Wireless communications
ISM applications
