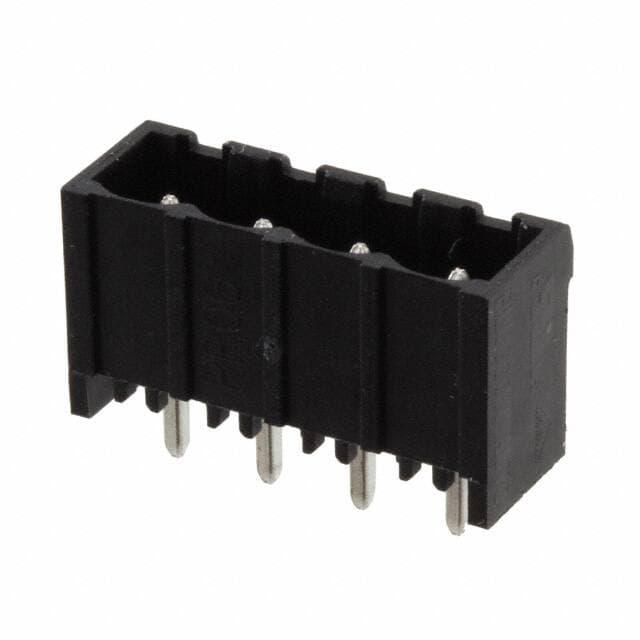

METZ CONNECT USA Inc. 31177104

Manufacturer No:

31177104

Manufacturer:

Package:

Description:

Bulk 0.197 5.00mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Polyamide (PA6T), Nylon 6T Tin Copper Alloy

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

31177104 information

METZ CONNECT USA Inc. 31177104 technical specifications, attributes, parameters and parts with similar specifications to METZ CONNECT USA Inc. 31177104.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Material
Copper Alloy

Mount
Through Hole

Mounting Type
Through Hole

Housing Material
Polyamide (PA6T), Nylon 6T

Operating Temperature
-40°C~105°C

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Through Hole

Type
Header, Male Pins, Shrouded (4 Side)

Number of Positions
4

Color
Black

Gender
Male

Pitch
0.197 5.00mm

Insulation Height
0.472 12.00mm

Termination Style
Solder

Contact Tail Length
0.128 3.25mm

Number of Levels
1

Contact Mating Finish
Tin

Voltage - UL
300V

Current - UL
15A

Header Orientation
Vertical

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for METZ CONNECT USA Inc. 31177104.

31177104 Overview

Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.In this case, Through Hole mounts the part.The device is operating at -40°C~105°C Operating Temperature.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.

31177104 Features

31177104 Applications

There are a lot of METZ CONNECT USA Inc.
31177104 Terminal Blocks applications.

Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
