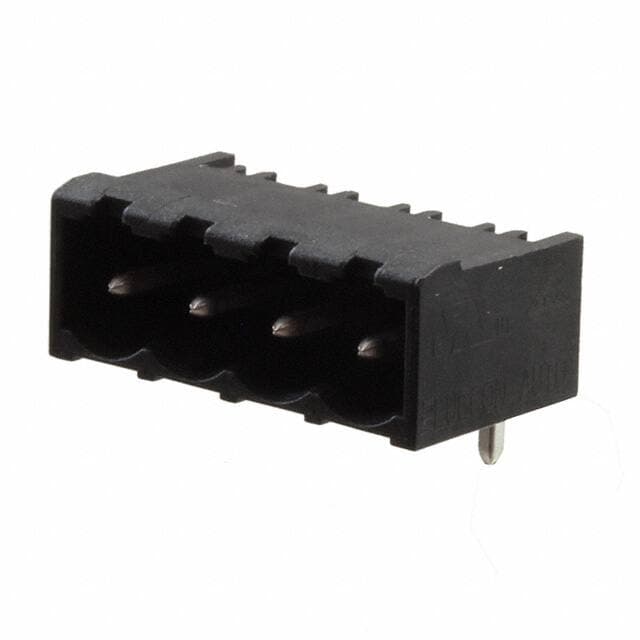

METZ CONNECT USA Inc. 31176104

Manufacturer No:

31176104

Manufacturer:

Package:

Description:

Tape & Reel (TR) 0.197 5.00mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Polyamide (PA6T), Nylon 6T Tin Copper Alloy

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

31176104 information

METZ CONNECT USA Inc. 31176104 technical specifications, attributes, parameters and parts with similar specifications to METZ CONNECT USA Inc. 31176104.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Material
Copper Alloy

Mount
Through Hole

Mounting Type
Through Hole

Housing Material
Polyamide (PA6T), Nylon 6T

Operating Temperature
-40°C~105°C

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Through Hole

Type
Header, Male Pins, Shrouded (4 Side)

Number of Positions
4

Color
Black

Number of Rows
1

Gender
Male

Pitch
0.197 5.00mm

Insulation Height
0.331 8.40mm

Termination Style
Solder

Contact Tail Length
0.136 3.45mm

Number of Levels
1

Contact Mating Finish
Tin

Voltage - UL
300V

Number of Decks
1

Current - UL
15A

Safety Approval
CUL; SEV; UL

Header Orientation
90°, Right Angle

Fastening Method
CONNECTOR

Rated Voltage
800V

Material Flammability Rating
UL94 V-0

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for METZ CONNECT USA Inc. 31176104.

31176104 Overview

Mounting type is Through Hole.To package the product, we use a Tape & Reel (TR) case.Mounted by Through Hole.Device runs at -40°C~105°C Operating Temperature.As with other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits.

31176104 Features

31176104 Applications

There are a lot of METZ CONNECT USA Inc.
31176104 Terminal Blocks applications.

Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
