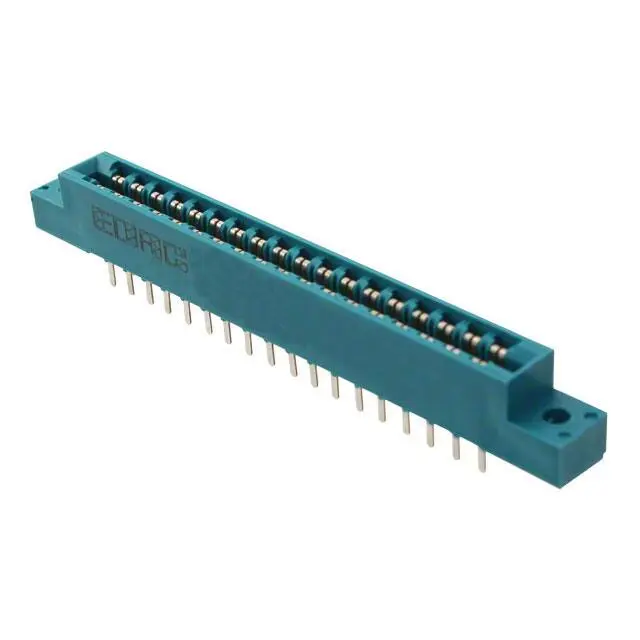

EDAC Inc. 305-036-520-202

Manufacturer No:

305-036-520-202

Manufacturer:

EDAC Inc.

Package:

Description:

Female Green 0.156 3.96mm Copper, Nickel, Tin Alloy 2 Rows Bulk Solder Gold 36 Positions Polyester Thermoplastic

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

305-036-520-202 information

EDAC Inc. 305-036-520-202 technical specifications, attributes, parameters and parts with similar specifications to EDAC Inc. 305-036-520-202.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Material
Copper, Nickel, Tin Alloy

Mount
Through Hole

Mounting Type
Through Hole

Housing Material
Polyester

Material - Insulation
Polyester Thermoplastic

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
305

Published
2005

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
CARD EDGE CONNECTOR

Number of Positions
36

Color
Green

Number of Rows
2

Gender
Female

Pitch
0.156 3.96mm

Orientation
Straight

Contact Finish
Gold

Contact Resistance
10mOhm

Read Out
Dual

Number of Positions/Bay/Row
18

Row Spacing
3.56 mm

Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.128 (3.25mm) Dia

Max Current Rating
5A

Height
11.7mm

Length
79.2mm

Width
8.71mm

Card Thickness
0.062 1.57mm

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for EDAC Inc. 305-036-520-202.

Environmental Information:

edacinc-628000943-environmentalinformation-7392.pdf

305-036-520-202 Overview

We packaged the material in accordance with Bulk's specifications.The mount type Through Hole is recommended.The device is connected with the connector socket CARD EDGE CONNECTOR.It indicates the series of the device by the 305.

305-036-520-202 Features

305 series

305-036-520-202 Applications

There are a lot of EDAC Inc.
305-036-520-202 Edgeboard Connectors applications.

Scientific instruments
Rotary encoder
Displaying
Transducer
Microcontrollers.
Digital Storage Oscilloscope
Scientific instruments.
Music reproduction technology
Communication Systems
Data Acquisition Systems
