3031306 information

Phoenix 3031306 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 3031306.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Mount
  • Through Hole
  • Housing Material
  • Polyamide
  • Weight
  • 9.599999g
  • Material - Insulation
  • Polyamide (PA), Nylon
  • Packaging
  • Bulk
  • Series
  • CLIPLINE ST
  • Published
  • 2008
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • ECCN Code
  • EAR99
  • Type
  • Feed Through
  • Number of Positions
  • 4
  • Color
  • Gray
  • Voltage - Rated
  • 800V
  • Depth
  • 5.2mm
  • Current Rating
  • 28A
  • Termination Style
  • Push In, Spring
  • Approval Agency
  • CB, CSA, UL, VDE, cULus
  • Voltage
  • 600V
  • Max Supply Voltage
  • 800V
  • Max Current Rating
  • 28A
  • Number of Levels
  • 1
  • Wire Gauge (Max)
  • 28 AWG
  • Wire Gauge (Min)
  • 12 AWG
  • Wire/Cable Gauge
  • 12 AWG
  • Number of Poles
  • 4
  • Wire Gauge or Range - AWG
  • 12-28 AWG
  • Number of Ways
  • 4
  • Wire Gauge or Range - mm²
  • 0.08-4mm2
  • Current - IEC
  • 24A
  • Stripping Length
  • 10mm
  • Fastening Method
  • SPRING LOADED
  • Height
  • 44mm
  • Length
  • 72mm
  • Width
  • 5.2mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Phoenix 3031306.

Datasheets:

3031306 Description

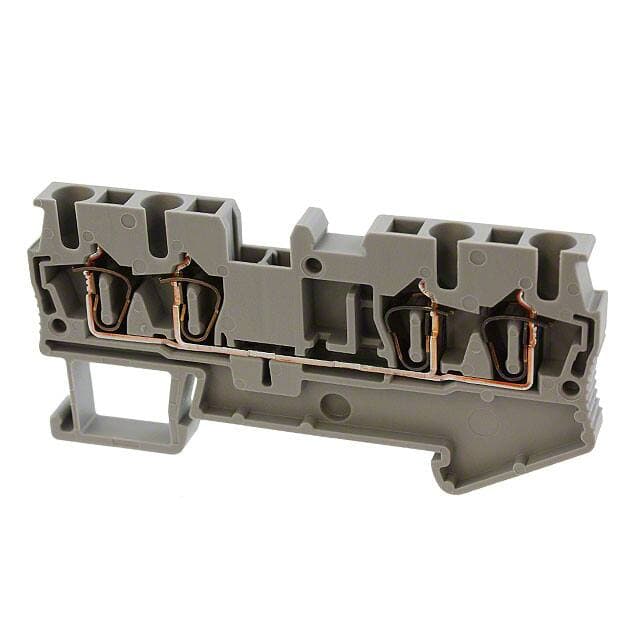

Feed-through modular terminal block, Type of connection: Springcage connection, Spring-cage connection, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7.5, NS 35/15. The ST line of four-wire spring-cage terminal blocks is offered by Phoenix Contact. With the consistent FBS (plug-in bridge system), these blocks enable cross-connection to any number of terminal blocks, and the compact distributors enable the double connection to support four conductors on a single potential. The 3031306 is built of a grey polyamide, can accommodate cable with a 28?12 AWG strand size, and has a nominal voltage of 800 V (current of 24 A).

Comparing spring-cage terminal blocks to traditional screw-in blocks will save you time. The spring-cage clamp will hold the wire in place, so you don't need to screw in more wires, but the wire will still need to be stripped to a specified length.



3031306 Features


  • Four wires on one potential through twin connection

  • Mounts onto an NS 35/7.5 or NS 35/15 DIN rail

  • Rated for installation in potentially explosive areas (ATEX)

  • FBS plug-in bridge systems enable further power distribution variations

  • Useable as a compact power distributor



3031306 Applications


  • Railway industry

  • Machine building

  • Plant engineering

  • Process industry
