Phoenix 3022276
Manufacturer No:
3022276
Manufacturer:
Package:
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
3022276 information
Phoenix 3022276 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 3022276.
- Type
- Parameter
- Factory Lead Time
- 7 Weeks
- Material
- Plastic, Polyamide
- Weight
- 4.8g
- Mounting Style
- STRAIGHT
- Packaging
- Bulk
- Series
- CLIPLINE
- Published
- 2003
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- Not Applicable
- ECCN Code
- EAR99
- Type
- End Bracket, Rail Type
- Color
- Gray
- HTS Code
- 3926.90.99.80
- MIL Conformance
- NO
- DIN Conformance
- NO
- IEC Conformance
- NO
- Approval Agency
- UL
- Assembly Item Name
- CLAMPING ITEM
- Height
- 35.0012mm
- Length
- 48.4886mm
- Width
- 5.15mm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
- Flammability Rating
- UL94 V-2
Download datasheets and manufacturer documentation for Phoenix 3022276.
Datasheets:
PCN Design/Specification:

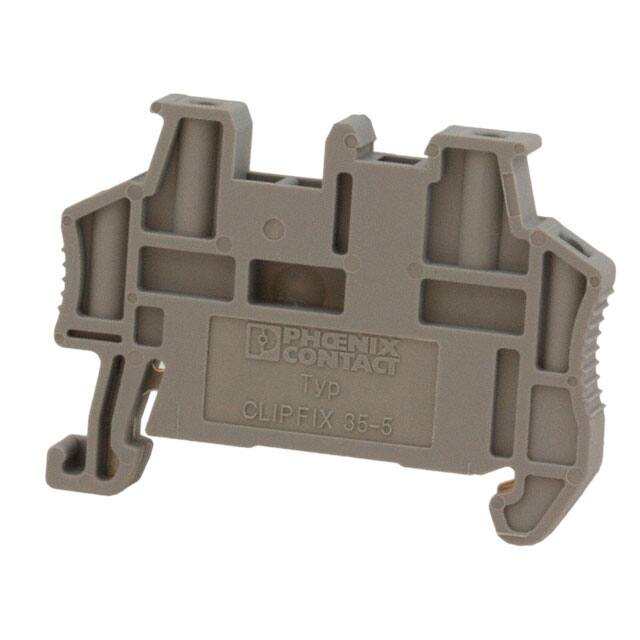

The Phoenix Contact 3022276 is a terminal block end bracket for rail mounting in gray. It is designed to be used with Phoenix Contact terminal blocks and accessories.
Features:
? Made of high-quality materials for durability and reliability
? Easy to install and use
? Compatible with Phoenix Contact terminal blocks and accessories
? Rail mounting for easy installation
? Gray color for easy identification
Applications:
The Phoenix Contact 3022276 terminal block end bracket is designed for use in a variety of applications, including industrial control systems, power distribution systems, and automation systems. It is ideal for use in harsh environments, as it is designed to withstand extreme temperatures and vibration.
