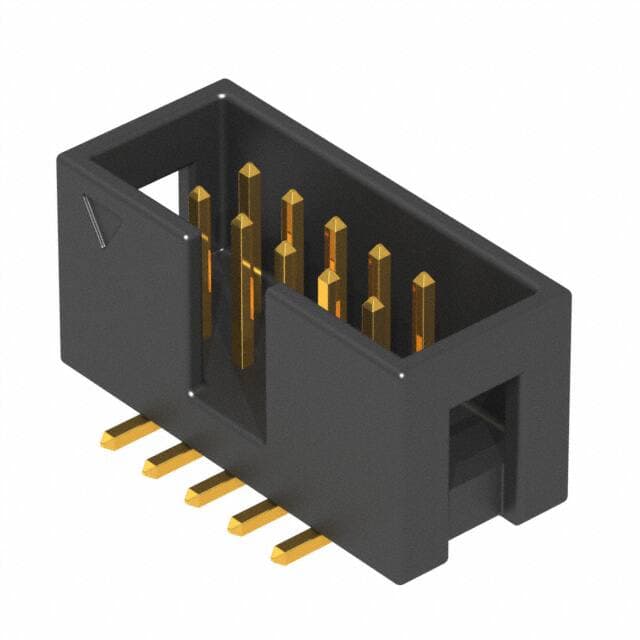

CNC Tech 3020-10-0300-00

Manufacturer No:

3020-10-0300-00

Manufacturer:

Package:

Description:

2-Row Header Solder Brass Tray Surface Mount Gold Polyamide (PA6T), Nylon 6T 10-Position Board to Cable/Wire 0.354 9.00mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

3020-10-0300-00 information

CNC Tech 3020-10-0300-00 technical specifications, attributes, parameters and parts with similar specifications to CNC Tech 3020-10-0300-00.

Type
Parameter

Factory Lead Time
18 Weeks

Contact Material
Brass

Mount
Surface Mount

Mounting Type
Surface Mount

Contact Shape
Square

Insulation Material
Polyamide (PA6T), Nylon 6T

Operating Temperature
-40°C~105°C

Packaging
Tray

Published
2014

Feature
Keying Slot

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
10

Number of Rows
2

HTS Code
8536.69.40.40

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

Contact Type
Male Pin

Current Rating (Amps)
1A

Insulation Height
0.354 9.00mm

Number of Positions Loaded
All

Current Rating
3A

Pitch - Mating
0.100 2.54mm

Row Spacing - Mating
0.100 (2.54mm)

Shrouding
Shrouded - 4 Wall

Contact Resistance
20mOhm

Contact Finish Thickness - Mating
Flash

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for CNC Tech 3020-10-0300-00.

3020-10-0300-00 Overview

The packaging is Header.Mounting type is Surface Mount.To package the product, we use a Tray case.A number of advantages are provided by its Keying Slot feature.Mounted by Surface Mount.Device runs at -40°C~105°C Operating Temperature.

3020-10-0300-00 Features

3020-10-0300-00 Applications

There are a lot of CNC Tech
3020-10-0300-00 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
