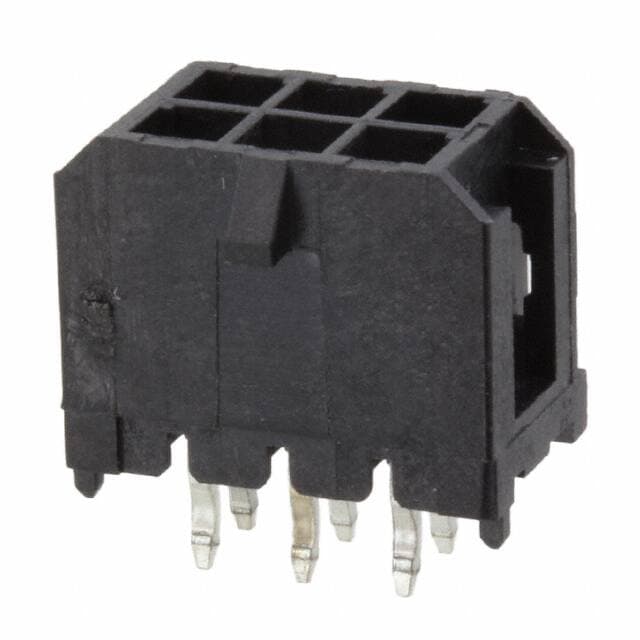

On-Shore 300HBT2V06
On-Shore 300HBT2V06

On-Shore 300HBT2V06

Manufacturer No:

300HBT2V06

Manufacturer:

On-Shore

Package:

Description:

2-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA6T), Nylon 6T 6-Position Board to Cable/Wire 0.390 9.91mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

300HBT2V06 information

On-Shore 300HBT2V06 technical specifications, attributes, parameters and parts with similar specifications to On-Shore 300HBT2V06.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Material
  • Brass
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Insulation Material
  • Polyamide (PA6T), Nylon 6T
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Feature
  • Board Guide
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Kinked Pin, Solder
  • Connector Type
  • Header
  • Number of Positions
  • 6
  • Number of Rows
  • 2
  • Voltage - Rated
  • 250V
  • Additional Feature
  • ROHS COMPLIANT
  • Fastening Type
  • Locking Ramp
  • Contact Finish - Mating
  • Tin
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 5A
  • Insulation Height
  • 0.390 9.91mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Body Length or Diameter
  • 0.5 inch
  • Row Spacing - Mating
  • 0.118 (3.00mm)
  • Contact Length - Post
  • 0.126 3.20mm
  • Shrouding
  • Shrouded - 4 Wall
  • Number Of PCB Rows
  • 2
  • PCB Contact Pattern
  • RECTANGULAR
  • Body Breadth
  • 0.345 inch
  • Body Depth
  • 0.39 inch
  • Contact Resistance
  • 10mOhm
  • Insulation Resistance
  • 1000000000Ohm
  • Mating Contact Pitch
  • 0.118 inch
  • Polarization Key
  • POLARIZED HOUSING
  • Dielectric Withstanding Voltage
  • 1500VAC V
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for On-Shore 300HBT2V06.

Datasheets:

300HBT2V06 Overview


This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.Furthermore, there are other features such as ROHS COMPLIANT, to name a few.In many ways, Board Guide makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -40°C~105°C.

300HBT2V06 Features




300HBT2V06 Applications


There are a lot of On Shore Technology Inc.
300HBT2V06 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
