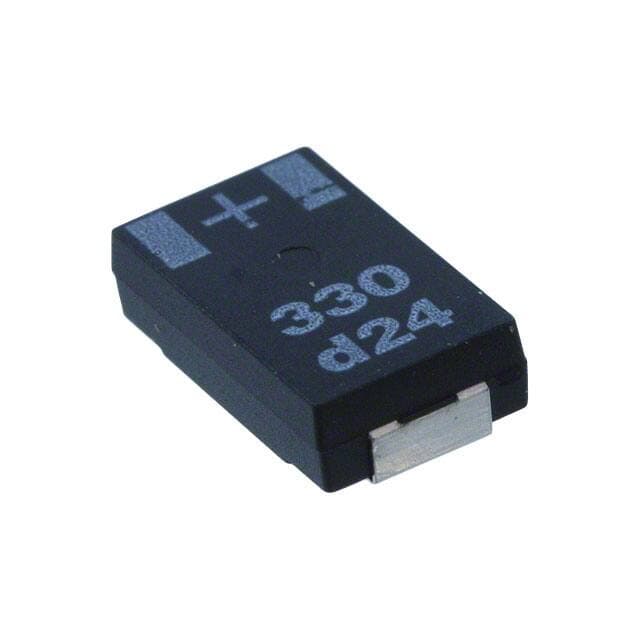

Rubycon 2SWZ330MR09
Rubycon 2SWZ330MR09

Rubycon 2SWZ330MR09

Manufacturer No:

2SWZ330MR09

Manufacturer:

Rubycon

Package:

2917 (7343 Metric)

Description:

330?F ±20% 2917 (7343 Metric) 0.075 1.90mm Cut Tape (CT) 9mOhm PC-CON, SWZ Surface Mount Polymer General Purpose

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2SWZ330MR09 information

Rubycon 2SWZ330MR09 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 2SWZ330MR09.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 2917 (7343 Metric)
  • Terminal Shape
  • WRAPAROUND
  • Surface Mount Land Size
  • 0.287Lx0.169W 7.30mmx4.30mm
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Cut Tape (CT)
  • Series
  • PC-CON, SWZ
  • Published
  • 2012
  • Size / Dimension
  • 0.287Lx0.169W 7.30mmx4.30mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Type
  • Polymer
  • Terminal Finish
  • Nickel/Palladium/Gold (Ni/Pd/Au)
  • Applications
  • General Purpose
  • Capacitance
  • 330?F
  • Voltage - Rated DC
  • 2V
  • Packing Method
  • TR
  • Case Code (Metric)
  • 7343
  • ESR (Equivalent Series Resistance)
  • 9mOhm
  • Polarity
  • POLARIZED
  • Rated (DC) Voltage (URdc)
  • 2V
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Leakage Current
  • 0.0264mA
  • Ripple Current
  • 3A
  • Life (Hours)
  • 2000 hours
  • Tan Delta
  • 0.1
  • Ripple Current @ High Frequency
  • 3A @ 100kHz
  • Ripple Current (AC)
  • 3A
  • Height
  • 1.9mm
  • Height Seated (Max)
  • 0.075 1.90mm
  • Length
  • 7.3mm
  • Width
  • 4.3mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Rubycon 2SWZ330MR09.

Datasheets:

2SWZ330MR09 Overview


3A @ 100kHz ripple current @ high frequency is necessary to power systems.ESR (Equivalent Series Resistance) of 9mOhm is observed in this electrical device.There must be a rated (DC) voltage (URdc) of 2V.In order to ensure stable operation, the operating temperature should be -55°C~105°C.

2SWZ330MR09 Features


3A @ 100kHz ripple current on a high frequency
a 9mOhm in ESR (Equivalent Series Resistance) in this electrical device
a rated voltage (DC) of 2V
an operating temperature of -55°C~105°C


2SWZ330MR09 Applications


There are a lot of Rubycon
2SWZ330MR09 applications of aluminum polymer capacitors.


  • LED driver power supplies
  • Phone chargers
  • Motherboards
  • Servers and adapters (laptop power supplies)
  • Medical equipment
  • Switching Power Supply and DC/DC Converter.
  • Buck up Power Supplies of CPU(VRM etc.)
  • Miniature high Power Supply.
