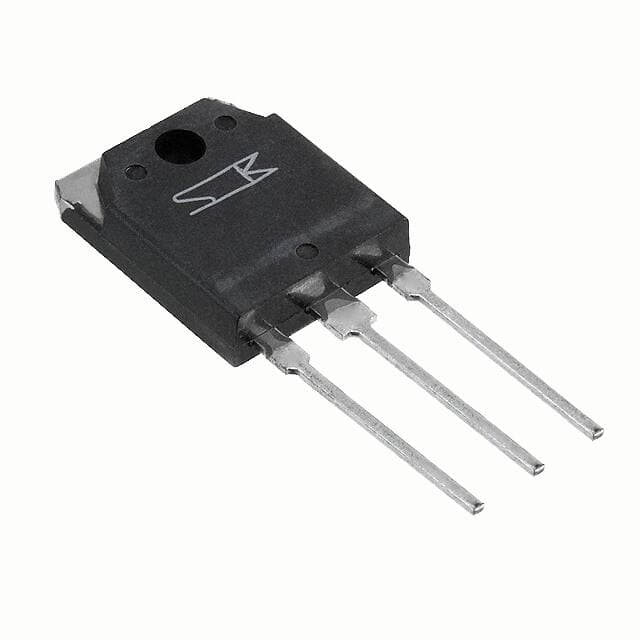

SANKEN 2SB1560
SANKEN 2SB1560

SANKEN 2SB1560

Manufacturer No:

2SB1560

Manufacturer:

SANKEN

Package:

TO-3P-3, SC-65-3

Description:

PNP - Darlington 150°C TJ 100?A ICBO 1 Elements 3 Terminations SILICON TO-3P-3, SC-65-3 Bulk Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2SB1560 information

SANKEN 2SB1560 technical specifications, attributes, parameters and parts with similar specifications to SANKEN 2SB1560.

  • Type
  • Parameter
  • Factory Lead Time
  • 24 Weeks
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-3P-3, SC-65-3
  • Surface Mount
  • NO
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Bulk
  • Published
  • 1999
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Additional Feature
  • BUILT IN BIAS RESISTOR
  • Terminal Position
  • SINGLE
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 3
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Polarity
  • PNP
  • Configuration
  • SINGLE
  • Power Dissipation
  • 100W
  • Transistor Type
  • PNP - Darlington
  • DC Current Gain (hFE) (Min) @ Ic, Vce
  • 5000 @ 7A 4V
  • Current - Collector Cutoff (Max)
  • 100?A ICBO
  • Vce Saturation (Max) @ Ib, Ic
  • 2.5V @ 7mA, 7A
  • Voltage - Collector Emitter Breakdown (Max)
  • 150V
  • Current - Collector (Ic) (Max)
  • 10A
  • Transition Frequency
  • 50MHz
  • Frequency - Transition
  • 50MHz
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for SANKEN 2SB1560.

Datasheets:

2SB1560 Overview


The DC current gain is the ratio of the base current to the collector current ?dc = Ic/Ib and the DC current gain for this device is 5000 @ 7A 4V.Vce saturation means Ic is at its maximum value(saturated), and the vce saturation(Max) is 2.5V @ 7mA, 7A.A transition frequency of 50MHz is present in the part.A 150V maximal voltage - Collector Emitter Breakdown is present in the device.

2SB1560 Features


the DC current gain for this device is 5000 @ 7A 4V
the vce saturation(Max) is 2.5V @ 7mA, 7A
a transition frequency of 50MHz


2SB1560 Applications


There are a lot of Sanken
2SB1560 applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
