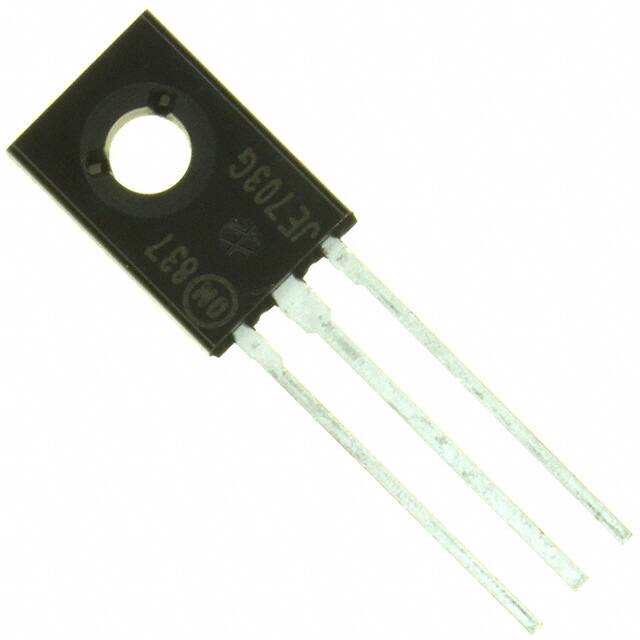

ONSEMI 2SB1143T
ONSEMI 2SB1143T

ONSEMI 2SB1143T

Manufacturer No:

2SB1143T

Manufacturer:

ONSEMI

Package:

TO-225AA, TO-126-3

Description:

PNP 150°C TJ 1?A ICBO 1 Elements 3 Terminations SILICON PNP TO-225AA, TO-126-3 Bulk Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2SB1143T information

ONSEMI 2SB1143T technical specifications, attributes, parameters and parts with similar specifications to ONSEMI 2SB1143T.

  • Type
  • Parameter
  • Contact Plating
  • Tin
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-225AA, TO-126-3
  • Surface Mount
  • NO
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Bulk
  • Published
  • 2003
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Max Power Dissipation
  • 1.5W
  • Pin Count
  • 3
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Transistor Application
  • SWITCHING
  • Gain Bandwidth Product
  • 150MHz
  • Polarity/Channel Type
  • PNP
  • Transistor Type
  • PNP
  • Collector Emitter Voltage (VCEO)
  • 50V
  • Max Collector Current
  • 4A
  • Current - Collector Cutoff (Max)
  • 1?A ICBO
  • Vce Saturation (Max) @ Ib, Ic
  • 700mV @ 100mA, 2A
  • Collector Emitter Breakdown Voltage
  • 50V
  • Max Frequency
  • 150MHz
  • Transition Frequency
  • 150MHz
  • Collector Emitter Saturation Voltage
  • -700mV
  • Max Breakdown Voltage
  • 50V
  • Collector Base Voltage (VCBO)
  • 60V
  • Emitter Base Voltage (VEBO)
  • 6V
  • hFE Min
  • 100
  • Continuous Collector Current
  • 4A
  • Height
  • 11mm
  • Length
  • 8mm
  • Width
  • 3.3mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ONSEMI 2SB1143T.

Datasheets:

2SB1143T Overview


This device has a DC current gain of 200 @ 100mA 2V, which is the ratio between the collector current and the base current.A collector emitter saturation voltage of -700mV allows maximum design flexibility.A VCE saturation indicates a maximum value of Ic (saturation), and a maximum value of VCE saturation (Max).A constant collector voltage of 4A is necessary for high efficiency.The base voltage of the emitter can be kept at 6V to achieve high efficiency.In this part, there is a transition frequency of 150MHz.As a result, it can handle voltages as low as 50V volts.The maximum collector current is 4A volts.

2SB1143T Features


the DC current gain for this device is 200 @ 100mA 2V
a collector emitter saturation voltage of -700mV
the vce saturation(Max) is 700mV @ 100mA, 2A
the emitter base voltage is kept at 6V
a transition frequency of 150MHz


2SB1143T Applications


There are a lot of ON Semiconductor
2SB1143T applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
