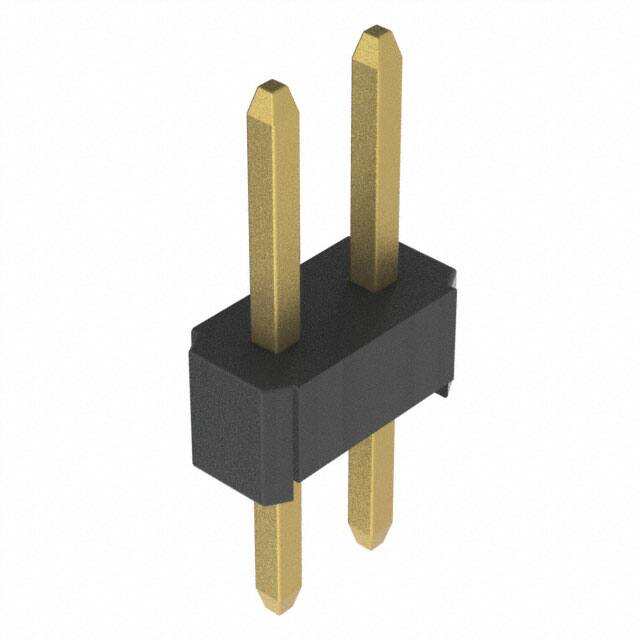

Adam Tech 2PH2-02-UA

Manufacturer No:

2PH2-02-UA

Manufacturer:

Package:

Description:

2PH2 Series 2-Row Header Solder Brass Bulk Through Hole Gold Polybutylene Terephthalate (PBT) 2-Position Board to Board 0.079 2.00mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2PH2-02-UA information

Adam Tech 2PH2-02-UA technical specifications, attributes, parameters and parts with similar specifications to Adam Tech 2PH2-02-UA.

Type
Parameter

Contact Material
Brass

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polybutylene Terephthalate (PBT)

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
2PH2

JESD-609 Code
e4

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
2

Number of Rows
2

Voltage - Rated
250VAC

Additional Feature
ROHS COMPLIANT

HTS Code
8536.69.40.40

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

Contact Type
Male Pin

Current Rating (Amps)
1A

Insulation Height
0.079 2.00mm

Style
Board to Board

Reach Compliance Code
compliant

Pitch - Mating
0.079 2.00mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL, CSA

Reliability
COMMERCIAL

Body Length or Diameter
0.079 inch

Row Spacing - Mating
0.079 (2.00mm)

Contact Length - Post
0.110 2.79mm

Shrouding
Unshrouded

Number Of PCB Rows
2

Contact Length - Mating
0.154 3.91mm

PCB Contact Pattern
RECTANGULAR

Body Breadth
0.157 inch

Body Depth
0.079 inch

Overall Contact Length
0.343 8.70mm

Insulation Resistance
5000000000Ohm

Mating Contact Pitch
0.079 inch

Dielectric Withstanding Voltage
1000VAC V

Durability
1000 Cycles

Contact Finish Thickness - Mating
Flash

Length - Termination
0.11 inch

Material Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for Adam Tech 2PH2-02-UA.

2PH2-02-UA Overview

The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the 2PH2 Series.To name a few, there is also ROHS COMPLIANT.As a result, the device runs at -40°C~105°C Operating Temperature.

2PH2-02-UA Features

2PH2 series

2PH2-02-UA Applications

There are a lot of Adam Tech
2PH2-02-UA Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
