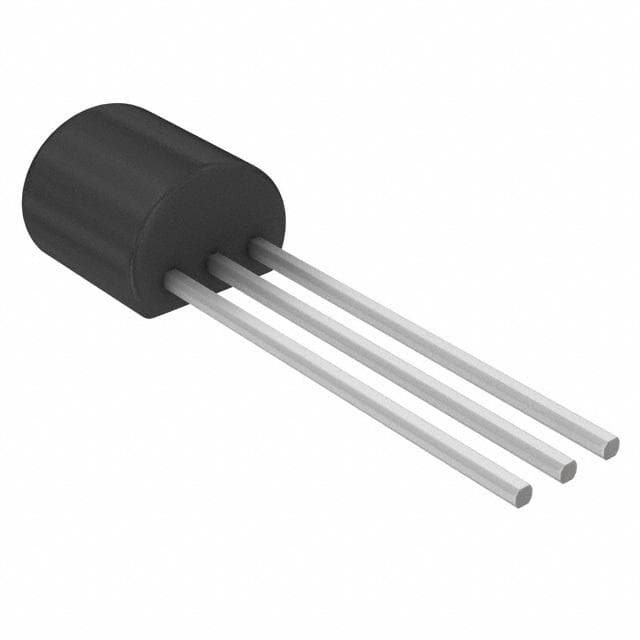

Central Semiconductor 2N3905
Central Semiconductor 2N3905

Central Semiconductor 2N3905

Manufacturer No:

2N3905

Manufacturer:

Central Semiconductor

Package:

TO-92

Description:

1 Elements 3 Terminations TO-92

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2N3905 information

Central Semiconductor 2N3905 technical specifications, attributes, parameters and parts with similar specifications to Central Semiconductor 2N3905.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Through Hole
  • Package / Case
  • TO-92
  • Published
  • 2011
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • HTS Code
  • 8541.21.00.75
  • Subcategory
  • Other Transistors
  • Terminal Position
  • BOTTOM
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 3
  • JESD-30 Code
  • O-PBCY-T3
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Polarity
  • PNP
  • Power Dissipation-Max
  • 625mW
  • Element Configuration
  • Single
  • Gain Bandwidth Product
  • 200MHz
  • Collector Emitter Voltage (VCEO)
  • 40V
  • Max Collector Current
  • 50nA
  • Collector Emitter Breakdown Voltage
  • 40V
  • Transition Frequency
  • 200MHz
  • Collector Emitter Saturation Voltage
  • 400mV
  • Frequency - Transition
  • 200MHz
  • Collector Base Voltage (VCBO)
  • 40V
  • Emitter Base Voltage (VEBO)
  • 5V
  • hFE Min
  • 30
  • DC Current Gain-Min (hFE)
  • 15
  • Continuous Collector Current
  • 200mA
  • Turn Off Time-Max (toff)
  • 260ns
  • Turn On Time-Max (ton)
  • 70ns
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for Central Semiconductor 2N3905.

ReachStatement:

Datasheets:

2N3905 Overview


The collector emitter saturation voltage is 400mV, which allows for maximum design flexibility.Continuous collector voltage should be kept at 200mA for high efficiency.Emitter base voltages of 5V can achieve high levels of efficiency.In the part, the transition frequency is 200MHz.A maximum collector current of 50nA volts can be achieved.

2N3905 Features


a collector emitter saturation voltage of 400mV
the emitter base voltage is kept at 5V
a transition frequency of 200MHz


2N3905 Applications


There are a lot of Central Semiconductor
2N3905 applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting

User Guide
