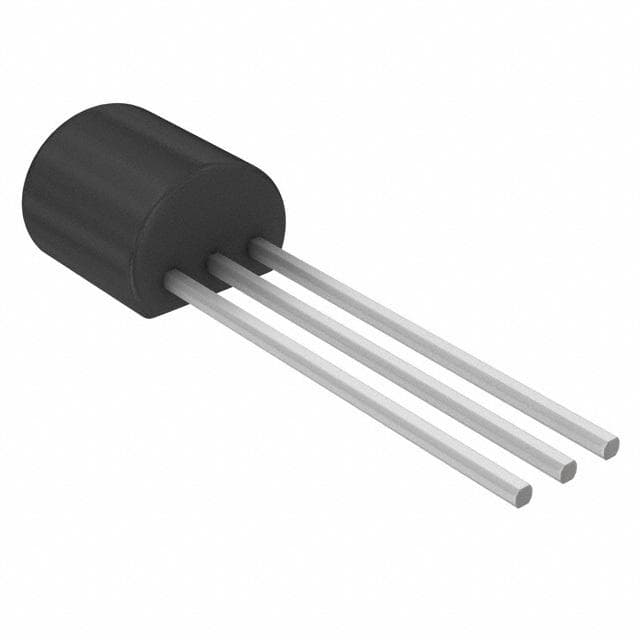

Central Semiconductor 2N3903
Central Semiconductor 2N3903

Central Semiconductor 2N3903

Manufacturer No:

2N3903

Manufacturer:

Central Semiconductor

Package:

TO-92

Description:

1 Elements 3 Terminations TO-92 Bulk

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2N3903 information

Central Semiconductor 2N3903 technical specifications, attributes, parameters and parts with similar specifications to Central Semiconductor 2N3903.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Through Hole
  • Package / Case
  • TO-92
  • Packaging
  • Bulk
  • Published
  • 2012
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • HTS Code
  • 8541.21.00.75
  • Subcategory
  • Other Transistors
  • Terminal Position
  • BOTTOM
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 3
  • JESD-30 Code
  • O-PBCY-T3
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Polarity
  • NPN
  • Power Dissipation-Max
  • 625mW
  • Transistor Application
  • SWITCHING
  • Gain Bandwidth Product
  • 250MHz
  • Collector Emitter Voltage (VCEO)
  • 40V
  • Max Collector Current
  • 50nA
  • Collector Emitter Breakdown Voltage
  • 40V
  • Transition Frequency
  • 250MHz
  • Collector Emitter Saturation Voltage
  • 300mV
  • Frequency - Transition
  • 250MHz
  • Collector Base Voltage (VCBO)
  • 60V
  • Emitter Base Voltage (VEBO)
  • 6V
  • hFE Min
  • 20
  • DC Current Gain-Min (hFE)
  • 15
  • Continuous Collector Current
  • 200mA
  • Turn Off Time-Max (toff)
  • 225ns
  • Turn On Time-Max (ton)
  • 70ns
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Central Semiconductor 2N3903.

ReachStatement:

Datasheets:

2N3903 Overview


With a collector emitter saturation voltage of 300mV, it offers maximum design flexibility.In order to achieve high efficiency, the continuous collector voltage should be kept at 200mA.If the emitter base voltage is kept at 6V, a high level of efficiency can be achieved.A transition frequency of 250MHz is present in the part.Collector current can be as low as 50nA volts at its maximum.

2N3903 Features


a collector emitter saturation voltage of 300mV
the emitter base voltage is kept at 6V
a transition frequency of 250MHz


2N3903 Applications


There are a lot of Central Semiconductor
2N3903 applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
