Central Semiconductor 2N3707
Central Semiconductor 2N3707

Central Semiconductor 2N3707

Manufacturer No:

2N3707

Manufacturer:

Central Semiconductor

Package:

TO-92

Description:

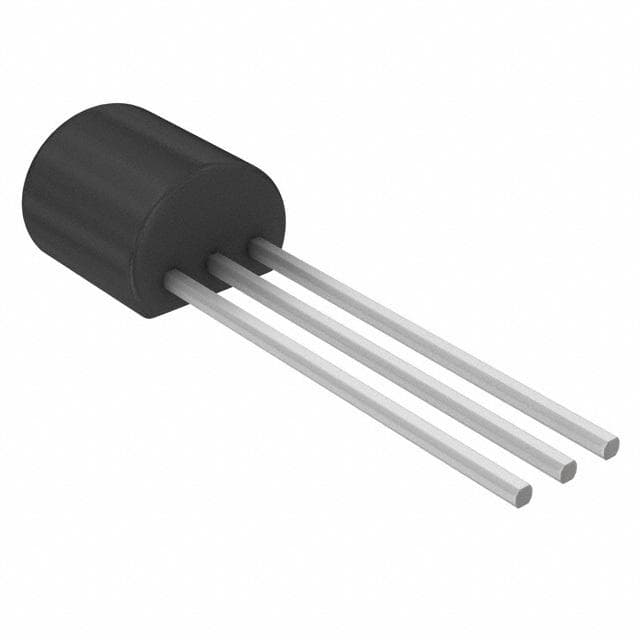

1 Elements 3 Terminations TO-92

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2N3707 information

Central Semiconductor 2N3707 technical specifications, attributes, parameters and parts with similar specifications to Central Semiconductor 2N3707.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Through Hole
  • Package / Case
  • TO-92
  • Published
  • 2012
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -65°C
  • Additional Feature
  • LOW NOISE
  • HTS Code
  • 8541.21.00.95
  • Subcategory
  • Other Transistors
  • Terminal Position
  • BOTTOM
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 3
  • JESD-30 Code
  • O-PBCY-T3
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Polarity
  • NPN
  • Power Dissipation-Max
  • 625mW
  • Collector Emitter Voltage (VCEO)
  • 30V
  • Max Collector Current
  • 100nA
  • Collector Emitter Breakdown Voltage
  • 30V
  • Transition Frequency
  • 100MHz
  • Collector Emitter Saturation Voltage
  • 1V
  • Collector Base Voltage (VCBO)
  • 30V
  • Emitter Base Voltage (VEBO)
  • 6V
  • hFE Min
  • 100
  • DC Current Gain-Min (hFE)
  • 100
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Central Semiconductor 2N3707.

ReachStatement:

Datasheets:

2N3707 Overview


This design offers maximum flexibility with a collector emitter saturation voltage of 1V.A high level of efficiency can be achieved if the base voltage of the emitter remains at 6V.As you can see, the part has a transition frequency of 100MHz.A maximum collector current of 100nA volts is possible.

2N3707 Features


a collector emitter saturation voltage of 1V
the emitter base voltage is kept at 6V
a transition frequency of 100MHz


2N3707 Applications


There are a lot of Central Semiconductor
2N3707 applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
