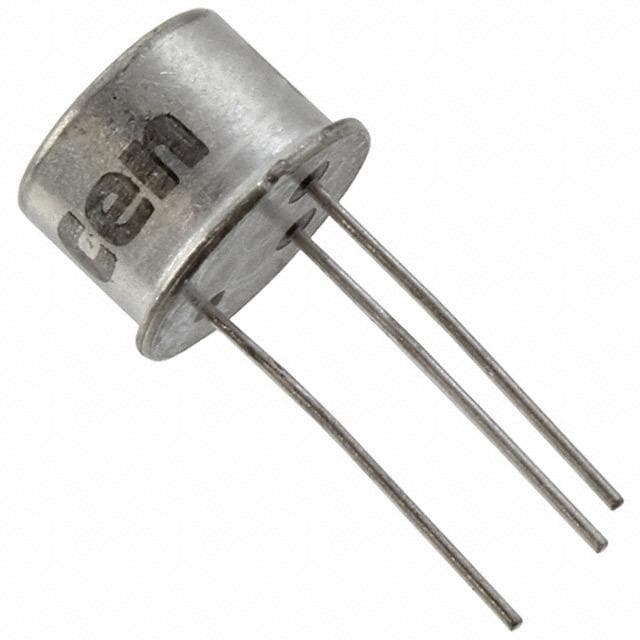

Central Semiconductor 2N3053
Central Semiconductor 2N3053

Central Semiconductor 2N3053

Manufacturer No:

2N3053

Manufacturer:

Central Semiconductor

Package:

TO-39

Description:

1 Elements 3 Terminations TO-39 Bulk

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2N3053 information

Central Semiconductor 2N3053 technical specifications, attributes, parameters and parts with similar specifications to Central Semiconductor 2N3053.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Through Hole
  • Package / Case
  • TO-39
  • Packaging
  • Bulk
  • Published
  • 2001
  • JESD-609 Code
  • e0
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -65°C
  • Subcategory
  • Other Transistors
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • WIRE
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 3
  • JESD-30 Code
  • O-MBCY-W3
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Polarity
  • NPN
  • Configuration
  • SINGLE
  • Transistor Application
  • SWITCHING
  • Gain Bandwidth Product
  • 100MHz
  • Collector Emitter Voltage (VCEO)
  • 1.4V
  • Max Collector Current
  • 700mA
  • Collector Emitter Breakdown Voltage
  • 40V
  • Transition Frequency
  • 100MHz
  • Collector Emitter Saturation Voltage
  • 1.7V
  • Frequency - Transition
  • 100MHz
  • Collector Base Voltage (VCBO)
  • 60V
  • Emitter Base Voltage (VEBO)
  • 5V
  • hFE Min
  • 25
  • DC Current Gain-Min (hFE)
  • 50
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Central Semiconductor 2N3053.

ReachStatement:

Datasheets:

2N3053 Overview


This design offers maximum flexibility with a collector emitter saturation voltage of 1.7V.A high level of efficiency can be achieved if the base voltage of the emitter remains at 5V.As you can see, the part has a transition frequency of 100MHz.A maximum collector current of 700mA volts is possible.

2N3053 Features


a collector emitter saturation voltage of 1.7V
the emitter base voltage is kept at 5V
a transition frequency of 100MHz


2N3053 Applications


There are a lot of Central Semiconductor
2N3053 applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
