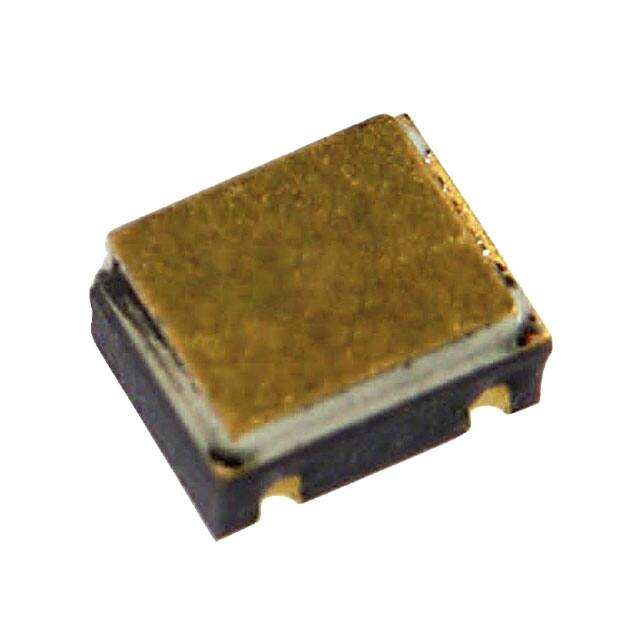

Manufacturer No:

2N2222AUBTXV

Manufacturer:

TT Electronics

Package:

4-CLCC

Description:

NPN -65°C~200°C TJ 10nA ICBO 4-CLCC Bulk Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2N2222AUBTXV information

TT Electronics 2N2222AUBTXV technical specifications, attributes, parameters and parts with similar specifications to TT Electronics 2N2222AUBTXV.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 4-CLCC
  • Number of Pins
  • 3
  • Operating Temperature
  • -65°C~200°C TJ
  • Packaging
  • Bulk
  • Published
  • 2005
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Power Dissipation
  • 300mW
  • Power Dissipation
  • 300mW
  • Transistor Type
  • NPN
  • Collector Emitter Voltage (VCEO)
  • 1V
  • Max Collector Current
  • 800mA
  • DC Current Gain (hFE) (Min) @ Ic, Vce
  • 75 @ 1mA 10V
  • Current - Collector Cutoff (Max)
  • 10nA ICBO
  • Vce Saturation (Max) @ Ib, Ic
  • 1V @ 15mA, 500mA
  • Collector Emitter Breakdown Voltage
  • 50V
  • Collector Emitter Saturation Voltage
  • 1V
  • Collector Base Voltage (VCBO)
  • 75V
  • Emitter Base Voltage (VEBO)
  • 6V
  • Height
  • 1.3716mm
  • Length
  • 3.175mm
  • Width
  • 2.667mm

Download datasheets and manufacturer documentation for TT Electronics 2N2222AUBTXV.

Datasheets:

PCN Obsolescence/ EOL:

2N2222AUBTXV Overview


The DC current gain is the ratio of the base current to the collector current ?dc = Ic/Ib and the DC current gain for this device is 75 @ 1mA 10V.With a collector emitter saturation voltage of 1V, it offers maximum design flexibility.Vce saturation means Ic is at its maximum value(saturated), and the vce saturation(Max) is 1V @ 15mA, 500mA.If the emitter base voltage is kept at 6V, a high level of efficiency can be achieved.Collector current can be as low as 800mA volts at its maximum.

2N2222AUBTXV Features


the DC current gain for this device is 75 @ 1mA 10V
a collector emitter saturation voltage of 1V
the vce saturation(Max) is 1V @ 15mA, 500mA
the emitter base voltage is kept at 6V


2N2222AUBTXV Applications


There are a lot of TT Electronics/Optek Technology
2N2222AUBTXV applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
