STMicroelectronics 2N2222
STMicroelectronics 2N2222

STMicroelectronics 2N2222

Manufacturer No:

2N2222

Manufacturer:

STMicroelectronics

Package:

TO-206AA, TO-18-3 Metal Can

Description:

NPN 175°C TJ 10nA ICBO 1 Elements 3 Terminations SILICON TO-206AA, TO-18-3 Metal Can Tube Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2N2222 information

STMicroelectronics 2N2222 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics 2N2222.

  • Type
  • Parameter
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-206AA, TO-18-3 Metal Can
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • 175°C TJ
  • Packaging
  • Tube
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Type
  • Switch
  • Terminal Finish
  • Matte Tin (Sn)
  • Additional Feature
  • LOW LEAKAGE CURRENT
  • Subcategory
  • Other Transistors
  • Voltage - Rated DC
  • 30V
  • Max Power Dissipation
  • 500mW
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • WIRE
  • Current Rating
  • 800mA
  • Frequency
  • 250MHz
  • Base Part Number
  • 2N22
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Power Dissipation
  • 500mW
  • Gain Bandwidth Product
  • 250MHz
  • Transistor Type
  • NPN
  • Collector Emitter Voltage (VCEO)
  • 30V
  • Max Collector Current
  • 800mA
  • DC Current Gain (hFE) (Min) @ Ic, Vce
  • 100 @ 150mA 10V
  • Current - Collector Cutoff (Max)
  • 10nA ICBO
  • Vce Saturation (Max) @ Ib, Ic
  • 1.6V @ 50mA, 500mA
  • Collector Emitter Breakdown Voltage
  • 30V
  • Current - Collector (Ic) (Max)
  • 600mA
  • Transition Frequency
  • 300MHz
  • Collector Base Voltage (VCBO)
  • 60V
  • Emitter Base Voltage (VEBO)
  • 5V
  • hFE Min
  • 35
  • VCEsat-Max
  • 1 V
  • Turn Off Time-Max (toff)
  • 285ns
  • Collector-Base Capacitance-Max
  • 8pF
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for STMicroelectronics 2N2222.

Datasheets:

2N2222 Description

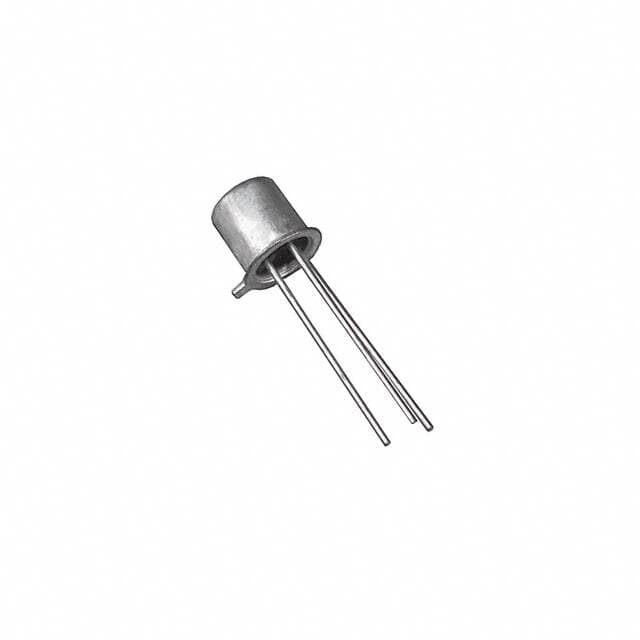

The 2N2222 is a low-power NPN bipolar junction transistor (BJT) that is commonly used in switching and amplifying applications. It's designed for low-to-medium current, low-to-medium power, medium-to-medium voltage, and quick operation. It was made in the TO-18 metal container depicted in the illustration.


2N2222 Features


When the base is open, the collector to emitter voltage is VCEO = 50V.

When the collector is open, the emitter to base voltage is VEBO= 6V.

When the emitter is open, the collector to base voltage is VCBO= 75.

IC = 800mA is the continuous collector current in DC.

PT = 1W is the total power dissipation of the gadget.


2N2222 Applications


This 2N2222 NPN Transistor can be utilized in loads that require more than 800mA of current.

Variable frequency drives (VFD) and other motor drive circuits

Circuits with dc inverters and rectifier circuits

Darlington pair transistors are used to get a high current from the emitter to the collector by connecting many transistors in parallel.

It can be used as an amplifier to boost current, voltage, or power.
