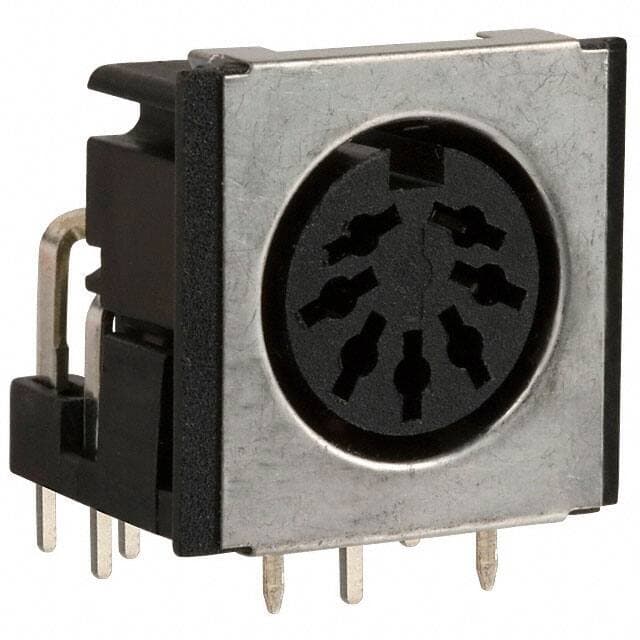

Singatron Enterprises Co Ltd 2DJ-0077PSA2

Manufacturer No:

2DJ-0077PSA2

Manufacturer:

Package:

Description:

Receptacle, Female Sockets Polybutylene Terephthalate (PBT) Through Hole, Right Angle 7 Positions Solder Tin Bulk Keyed Push-Pull

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2DJ-0077PSA2 information

Singatron Enterprises Co Ltd 2DJ-0077PSA2 technical specifications, attributes, parameters and parts with similar specifications to Singatron Enterprises Co Ltd 2DJ-0077PSA2.

Type
Parameter

Contact Material
Brass

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Insulation Material
Plastic

Shell Material
Polybutylene Terephthalate (PBT)

Operating Temperature
-10°C~85°C

Packaging
Bulk

Series
2DJ

Published
2002

Feature
Ground

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder

Connector Type
Receptacle, Female Sockets

Number of Positions
7

Color
Black

Applications
Audio

Voltage - Rated
100VAC 24VDC

Fastening Type
Push-Pull

Contact Finish - Mating
Tin

Current Rating (Amps)
1A 2A

Orientation
Keyed

Shielding
Shielded

Current Rating
2A

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Singatron Enterprises Co Ltd 2DJ-0077PSA2.

Datasheets:

singatron-2dj0077psa2-datasheets-9937.pdf

2DJ-0077PSA2 Overview

This product is packaged in a Receptacle, Female Sockets box.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the 2DJ Series.In many ways, Ground makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -10°C~85°C.

2DJ-0077PSA2 Features

2DJ series

2DJ-0077PSA2 Applications

There are a lot of Singatron Enterprises Co Ltd
2DJ-0077PSA2 Circular Connectors applications.

Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
