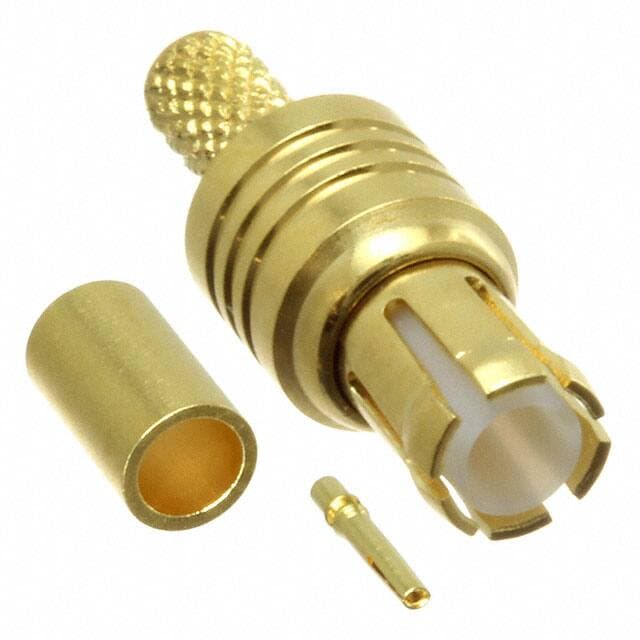

Rosenberger 29S111-102L5

Manufacturer No:

29S111-102L5

Manufacturer:

Rosenberger

Package:

ROHS COMPLIANT

Description:

RF MCX Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

29S111-102L5 information

Rosenberger 29S111-102L5 technical specifications, attributes, parameters and parts with similar specifications to Rosenberger 29S111-102L5.

Type
Parameter

Part Life Cycle Code
Active

Ihs Manufacturer
ROSENBERGER HOCHFREQUENZTECHNIK GMBH & CO KG

Package Description
ROHS COMPLIANT

Reach Compliance Code
compliant

Samacsys Manufacturer
Rosenberger

Additional Feature
APPLICABLE CABLES: RG 316 /U; RG 174 A/U; RG 188 A/U, INSERTION LOSS AND VSWR MAX AT: 4 GHZ

Body Depth
0.165 inch

Body Diameter
0.196 inch

Body/Shell Style
PLUG

Cable Types
RG-316/U

Characteristic Impedance
50 Ω

Connector Type
RF MCX CONNECTOR

Contact Finish Mating
NOT APPLICABLE

Contact Finish Termination
Gold (Au)

Contact Gender
MALE

Contact Material
NOT APPLICABLE

Contact Resistance
5 mΩ

Contact Style
COAX

Coupling Type
SNAP

DIN Conformance
NO

Durability
500 Cycles

Filter Feature
NO

IEC Conformance
NO

Insertion Force-Max
23.5744 N

Insulation Resistance
1000000000 Ω

Insulator Material
POLYTETRAFLUOROETHYLENE

JESD-609 Code
e4

MIL Conformance
NO

Mounting Style
STRAIGHT

Mounting Type
CABLE

Number of Ports
1

Operating Frequency-Max
6 GHz

Operating Temperature-Max
155 °C

Operating Temperature-Min
-55 °C

Option
GENERAL PURPOSE

Panel Mount
NO

Termination Type
CRIMP

Total Number of Contacts
1

VSWR
1.22

Download datasheets and manufacturer documentation for Rosenberger 29S111-102L5.

Datasheets:

rosenberger-29s111102l5-datasheets-4988.pdf

29S111-102L5 Overview

Currently, it is packaged in Plug, Male Pin.Free Hanging (In-Line) is the mounting type for the device.The product is packaged in a Bulk case.A number of tasks can be managed using the 1 ports.It runs at -55°C~155°C Operating Temperature.

29S111-102L5 Features

29S111-102L5 Applications

There are a lot of Rosenberger
29S111-102L5 Coaxial Connectors applications.

Industrial Automation
Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
