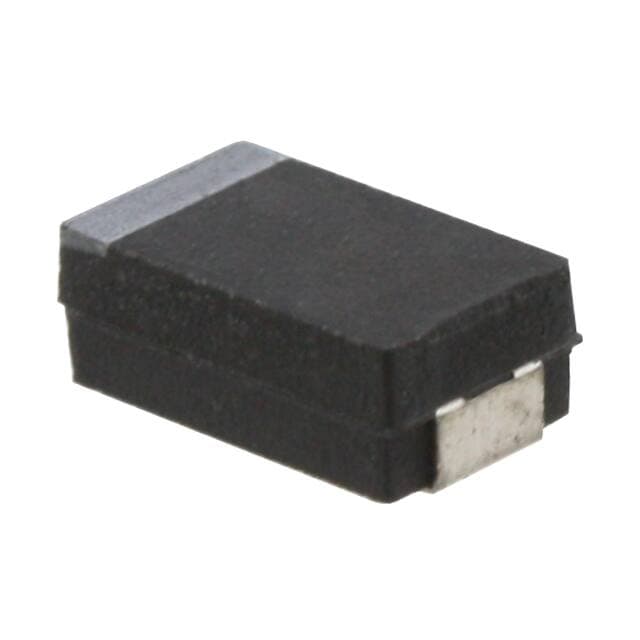

VISHAY 293D476X0020D2TE3
Manufacturer No:
293D476X0020D2TE3
Manufacturer:
Package:
2917 (7343 Metric)
Description:
47μF ±20% 700mOhm 2-Termination Polar Tantalum 9.4μA Tape & Reel (TR) 2917 (7343 Metric)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
293D476X0020D2TE3 information
VISHAY 293D476X0020D2TE3 technical specifications, attributes, parameters and parts with similar specifications to VISHAY 293D476X0020D2TE3.
- Type
- Parameter
- Factory Lead Time
- 14 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 2917 (7343 Metric)
- Number of Pins
- 2
- Dielectric Material
- Tantalum
- Operating Temperature
- -55°C~125°C
- Packaging
- Tape & Reel (TR)
- Series
- TANTAMOUNT®, 293D
- Published
- 2015
- Size / Dimension
- 0.287Lx0.169W 7.30mmx4.30mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Feature
- General Purpose
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Termination
- SMD/SMT
- ECCN Code
- EAR99
- Type
- Molded
- Terminal Finish
- Matte Tin (Sn) - with Nickel (Ni) barrier
- Capacitance
- 47μF
- Voltage - Rated DC
- 2V
- Depth
- 4.3mm
- Case Code (Metric)
- 7343
- Case Code (Imperial)
- 2917
- ESR (Equivalent Series Resistance)
- 700mOhm
- Polarity
- Polar
- Leakage Current
- 9.4μA
- Ripple Current
- 460mA
- Tan Delta
- 0.06
- Dissipation Factor
- 6 %
- Manufacturer Size Code
- D
- Height
- 3.1mm
- Height Seated (Max)
- 0.122 3.10mm
- Length
- 7.3mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for VISHAY 293D476X0020D2TE3.
PCN Design/Specification:
RohsStatement:
293D476X0020D2TE3 Overview
Capacitor ripple current is set to 460mA.A series resistance (ESR), also known as internal resistance, measures the loss of useful energy in a simple electronic circuit with a resistor and an ideal (perfect) capacitor, and its resistance is 700mOhm.9.4μA is the leakage current of this capacitor.In this capacitor's case, the dissipation factor 6 % represents the power loss caused by AC applied through it.The tan delta of the insulating oil is 0.06 based on its electrical dielectric test.
293D476X0020D2TE3 Features
460mA is the ripple current of the capacitor
a leakage current of 9.4μA in this capacitor
the dissipation factor is 6 %
its tan delta is 0.06
293D476X0020D2TE3 Applications
There are a lot of Vishay Sprague
293D476X0020D2TE3 applications of tantalum capacitors.
- Computer
- General purpose
- General low power DC/DC and LDO
- Automotive ECU
- ABS
- Airbag systems
- Avionics,
- Industrial control units
- Military / aerospace
- General purpose
