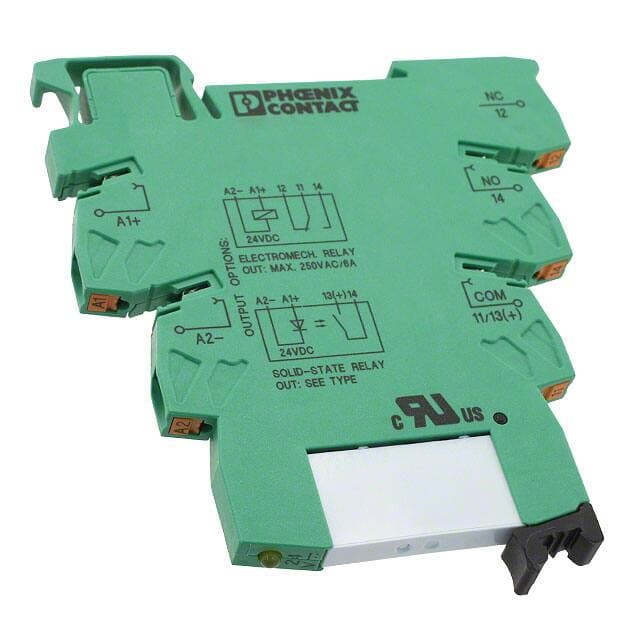

Phoenix 2900306

Manufacturer No:

2900306

Manufacturer:

Phoenix

Package:

Module

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2900306 information

Phoenix 2900306 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 2900306.

Type
Parameter

Factory Lead Time
4 Weeks

Contact Material
Silver Tin Oxide (AgSnO), Gold (Au)

Mount
DIN Rail

Mounting Type
DIN Rail

Package / Case
Module

Weight
32.716994g

Operating Temperature
-40°C~60°C

Packaging
Bulk

Series
PLC-RPT

Published
2011

JESD-609 Code
e4

Feature
Lighted Indicator, Socket Included

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Screwless

ECCN Code
EAR99

Additional Feature
LED INDICATOR

Voltage - Rated DC
144mV

Depth
6.2mm

Current Rating
6A

Termination Style
Spring Terminal

Voltage - Rated AC
120mV

Approval Agency
UL

Physical Dimension
80mm x 6.2mm x 94mm

Number of Circuits
1

Throw Configuration
SPDT

Max Voltage Rating (DC)
24V

Turn On Delay Time
5 ms

Contact Form
SPDT (1 Form C)

Max Input Voltage
24V

Relay Type
General Purpose

Turn-Off Delay Time
8 ms

Coil Resistance
2666Ohm

Operate Time
5ms

Coil Voltage
24VDC

Coil Type
Non Latching

Switching Voltage
30VAC 36VDC -Max

Contact Rating (Current)
50mA

Contact Voltage(AC)-Max
30V

Relay Action
MOMENTARY

Coil Voltage (DC)
24V

Coil/Input Supply Type
DC

Input Current
9mA

Coil Current(DC)-Max
0.009A

Height
80mm

Length
94mm

Download datasheets and manufacturer documentation for Phoenix 2900306.

Datasheets:

phoenixcontact-2900306-datasheets-1453.pdf

phoenixcontact-2900306-datasheets-1454.pdf

PCN Design/Specification:

phoenixcontact-2900330-pcndesignspecification-0613.pdf

The Phoenix Contact Signal Relay, Up to 2 Amps 2900306 is a general purpose single-pole double-throw (SPDT) relay designed for use in a variety of applications. It is rated for up to 2 amps and operates at 24 volts DC. This relay is ideal for switching low-power signals, such as those used in control systems, alarms, and other applications.

Features of the Phoenix Contact Signal Relay, Up to 2 Amps 2900306 include:
? SPDT design for switching low-power signals
? Rated for up to 2 amps
? Operates at 24 volts DC
? Compact size for easy installation
? Durable construction for long-term reliability

The Phoenix Contact Signal Relay, Up to 2 Amps 2900306 is suitable for a variety of applications, including control systems, alarms, and other low-power signal switching applications. It is also suitable for use in industrial, commercial, and residential settings.
