Phoenix 2744694

Manufacturer No:

2744694

Manufacturer:

Phoenix

Package:

Metal

Description:

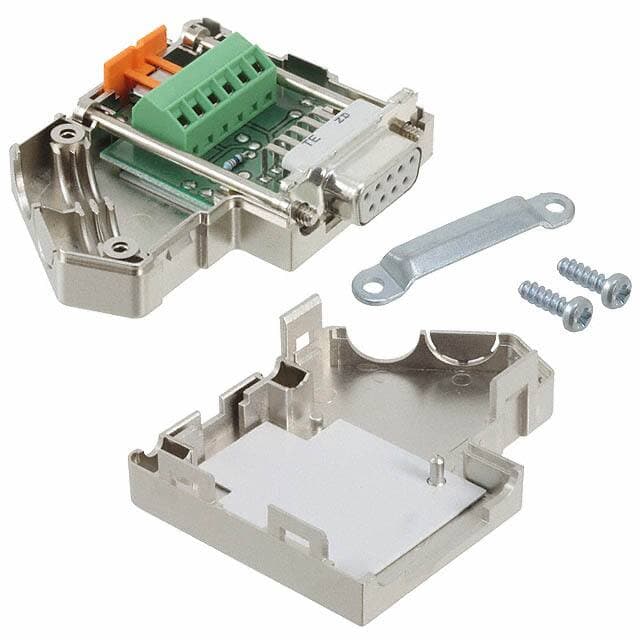

SUBCON Series D-Sub Receptacle, Female Sockets 9-Position Receptacle Signal Terminal Block 1 DE E Free Hanging (In-Line)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2744694 information

Phoenix 2744694 technical specifications, attributes, parameters and parts with similar specifications to Phoenix 2744694.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Cable, Free Hanging

Mounting Type
Free Hanging (In-Line)

Package / Case
Metal

Number of Pins
9

Material
ABS

Dielectric Material
Acrylonitrile Butadiene Styrene (ABS), Metal Plated

Housing Material
ABS

Weight
60.800003g

Body Material
Metal

Operating Temperature
-20°C~75°C

Packaging
Bulk

Series
SUBCON

Published
2011

Feature
Shielded

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Terminal Block

Connector Type
Receptacle, Female Sockets

Number of Positions
9

Max Operating Temperature
75°C

Min Operating Temperature
-20°C

Number of Rows
2

Gender
Receptacle

Voltage - Rated DC
60V

Contact Type
Signal

Current Rating (Amps)
1A

Orientation
Straight

Depth
16mm

Current Rating
100mA

Voltage - Rated AC
60V

Number of Contacts
9

Working Voltage
60V

Flange Feature
Cable Side, Male Jackscrew (4-40)

Interface
CAN

Connector Style
D-Sub

Wire Gauge (Max)
16 AWG

Wire Gauge (Min)
26 AWG

Wire/Cable Gauge
16 AWG

Shell Size, Connector Layout
1 DE E

Wire/Cable Diameter
10 mm

Height
44mm

Length
60mm

Width
16mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Phoenix 2744694.

Datasheets:

phoenixcontact-2744694-datasheets-0538.pdf

2744694 Overview

The product comes in a package of Receptacle, Female Sockets.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the SUBCON Series of products.9 pins are provided on the device.Whenever it's below 75°C, it's best to use it.The device must operate at a temperature of -20°C at all times.A device is enclosed in the packaging with the Metal.A number of features make it more powerful because of its Shielded feature.Cable, Free Hanging mounts the part.There is no operating temperature for the device.

2744694 Features

SUBCON series

2744694 Applications

There are a lot of Phoenix Contact
2744694 D-Sub Connectors applications.

Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
