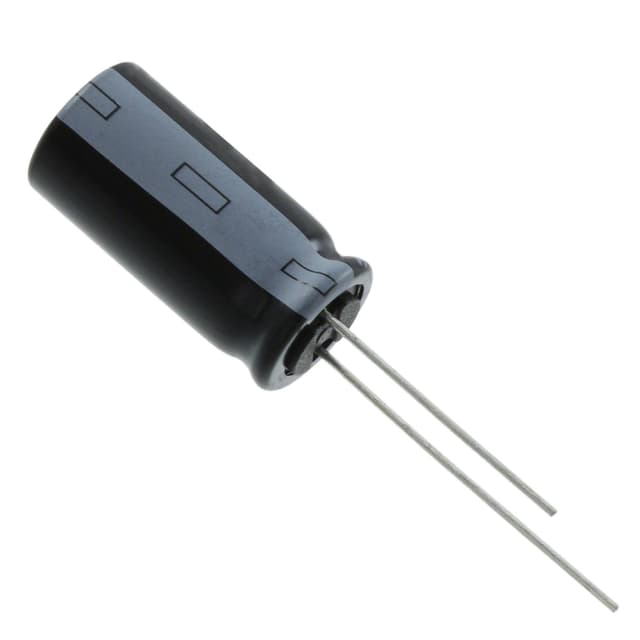

Rubycon 25ZLH820MEFC10X20
Rubycon 25ZLH820MEFC10X20

Rubycon 25ZLH820MEFC10X20

Manufacturer No:

25ZLH820MEFC10X20

Manufacturer:

Rubycon

Package:

Radial, Can

Description:

ZLH 820?F Capacitor ±20% Bulk Through Hole 1.96A 0.394Dia 10.00mm -40°C~105°C Polar 5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

25ZLH820MEFC10X20 information

Rubycon 25ZLH820MEFC10X20 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 25ZLH820MEFC10X20.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • ZLH
  • Published
  • 2009
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • Capacitance
  • 820?F
  • Voltage - Rated DC
  • 25V
  • Lead Pitch
  • 5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.197 5.00mm
  • Lead Diameter
  • 600 ?m
  • Lifetime @ Temp
  • 10000 Hrs @ 105°C
  • Leakage Current
  • 3?A
  • Ripple Current
  • 1.96A
  • Polarization
  • Polar
  • Life (Hours)
  • 10000 hours
  • Impedance
  • 20mOhm
  • Ripple Current @ Low Frequency
  • 1.176A @ 120Hz
  • Ripple Current @ High Frequency
  • 1.96A @ 100kHz
  • Diameter
  • 10mm
  • Height
  • 20mm
  • Height Seated (Max)
  • 0.866 22.00mm
  • REACH SVHC
  • Unknown
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Rubycon 25ZLH820MEFC10X20.

Datasheets:

25ZLH820MEFC10X20 Overview


Full charge results in a ripple current of 1.96A @ 100kHz.The ripple current at the lowest charge is 1.176A @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.866 22.00mm is recommended.Rated DC voltage is 25V for this capacitor.High efficiency requires an operating temperature of -40°C~105°C.

25ZLH820MEFC10X20 Features


the ripple current is 1.96A @ 100kHz.
the ripple current is 1.176A @ 120Hz.
voltage - Rated DC of 25V
an operating temperature of -40°C~105°C


25ZLH820MEFC10X20 Applications


There are a lot of Rubycon
25ZLH820MEFC10X20 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
