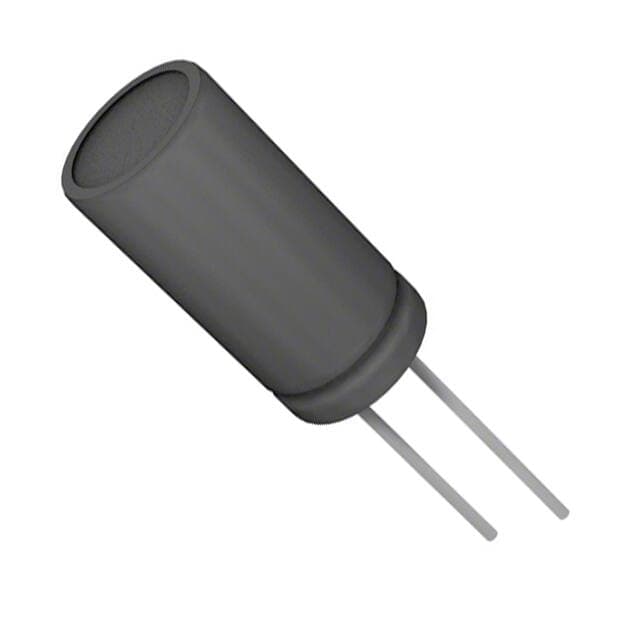

Rubycon 25YXJ1000M10X20
Rubycon 25YXJ1000M10X20

Rubycon 25YXJ1000M10X20

Manufacturer No:

25YXJ1000M10X20

Manufacturer:

Rubycon

Package:

Radial, Can

Description:

YXJ 1000?F Capacitor ±20% Bulk Through Hole 1.4A 0.394Dia 10.00mm -40°C~105°C Polar 5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

25YXJ1000M10X20 information

Rubycon 25YXJ1000M10X20 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 25YXJ1000M10X20.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • YXJ
  • Published
  • 2011
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Radial
  • Applications
  • General Purpose
  • Capacitance
  • 1000?F
  • Voltage - Rated DC
  • 25V
  • Lead Pitch
  • 5mm
  • Lead Spacing
  • 0.197 5.00mm
  • Lead Diameter
  • 600 ?m
  • Voltage
  • 25V
  • Lifetime @ Temp
  • 10000 Hrs @ 105°C
  • Leakage Current
  • 3?A
  • Ripple Current
  • 1.4A
  • Life (Hours)
  • 10000 hours
  • Impedance
  • 46mOhm
  • Ripple Current @ Low Frequency
  • 1.05A @ 120Hz
  • Ripple Current @ High Frequency
  • 1.4A @ 100kHz
  • Diameter
  • 10mm
  • Height
  • 20mm
  • Height Seated (Max)
  • 0.866 22.00mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Rubycon 25YXJ1000M10X20.

Datasheets:

25YXJ1000M10X20 Overview


Ripple current at full charge is 1.4A @ 100kHz.It is 1.05A @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.866 22.00mm.Voltage - Rated DC - is 25V.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.

25YXJ1000M10X20 Features


the ripple current is 1.4A @ 100kHz.
the ripple current is 1.05A @ 120Hz.
voltage - Rated DC of 25V
an operating temperature of -40°C~105°C


25YXJ1000M10X20 Applications


There are a lot of Rubycon
25YXJ1000M10X20 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
