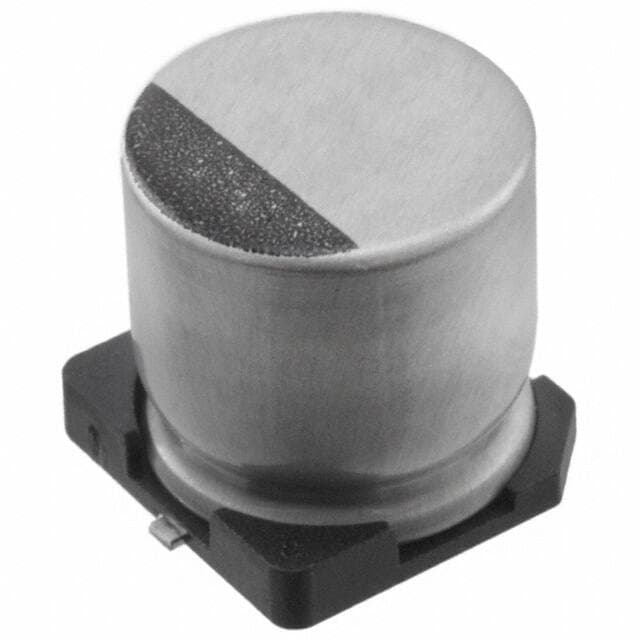

Rubycon 25TZV220M8X10.5
Manufacturer No:
25TZV220M8X10.5
Manufacturer:
Package:
Radial, Can - SMD
Description:
TZV 220?F Capacitor ±20% Tape & Reel (TR) Surface Mount 360mA 0.315Dia 8.00mm -55°C~105°C Polar Radial, Can - SMD
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
25TZV220M8X10.5 information
Rubycon 25TZV220M8X10.5 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 25TZV220M8X10.5.
- Type
- Parameter
- Factory Lead Time
- 16 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Terminal Shape
- WRAPAROUND
- Number of Pins
- 2
- Dielectric Material
- Aluminium
- Surface Mount Land Size
- 0.327Lx0.327W 8.30mmx8.30mm
- Operating Temperature
- -55°C~105°C
- Packaging
- Tape & Reel (TR)
- Series
- TZV
- Size / Dimension
- 0.315Dia 8.00mm
- Tolerance
- ±20%
- JESD-609 Code
- e6
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Terminal Finish
- Tin/Bismuth (Sn/Bi)
- Applications
- Automotive
- Capacitance
- 220?F
- Voltage - Rated DC
- 25V
- Packing Method
- TR
- Capacitor Type
- ALUMINUM ELECTROLYTIC CAPACITOR
- Size Code
- 3333
- Lifetime @ Temp
- 2000 Hrs @ 105°C
- Leakage Current
- 0.055mA
- Ripple Current
- 360mA
- Polarization
- Polar
- Life (Hours)
- 2000 hours
- Tan Delta
- 0.14
- Impedance
- 160mOhm
- Ripple Current @ Low Frequency
- 360mA @ 120Hz
- Ripple Current @ High Frequency
- 600mA @ 100kHz
- Ripple Current (AC)
- 600mA
- Diameter
- 8mm
- Height
- 10.5mm
- Height Seated (Max)
- 0.413 10.50mm
- Length
- 8.9mm
- Width
- 8.3mm
- REACH SVHC
- Unknown
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Ratings
- AEC-Q200
Download datasheets and manufacturer documentation for Rubycon 25TZV220M8X10.5.
25TZV220M8X10.5 Overview
Full charge results in a ripple current of 600mA @ 100kHz.The ripple current at the lowest charge is 360mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.413 10.50mm is recommended.Rated DC voltage is 25V for this capacitor.Capacitor operates at 25V volts AC.High efficiency requires an operating temperature of -55°C~105°C.
25TZV220M8X10.5 Features
the ripple current is 600mA @ 100kHz.
the ripple current is 360mA @ 120Hz.
voltage - Rated DC of 25V
an operating temperature of -55°C~105°C
25TZV220M8X10.5 Applications
There are a lot of Rubycon
25TZV220M8X10.5 applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
