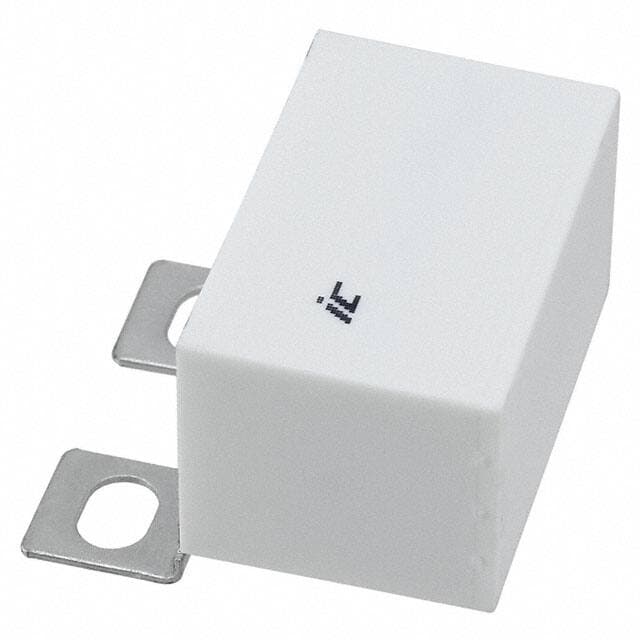

Illinois Capacitor 255PMB850KSP0
Illinois Capacitor 255PMB850KSP0

Illinois Capacitor 255PMB850KSP0

Manufacturer No:

255PMB850KSP0

Manufacturer:

Illinois Capacitor

Package:

Rectangular Box

Description:

PMB 2.5?F Film Capacitor ±10% Rectangular Box Screw Terminals 850V-DC 450V-AC Polypropylene (PP), Metallized Chassis Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

255PMB850KSP0 information

Illinois Capacitor 255PMB850KSP0 technical specifications, attributes, parameters and parts with similar specifications to Illinois Capacitor 255PMB850KSP0.

  • Type
  • Parameter
  • Factory Lead Time
  • 17 Weeks
  • Mount
  • Chassis Mount
  • Mounting Type
  • Chassis Mount
  • Package / Case
  • Rectangular Box
  • Terminal Shape
  • LUG
  • Dielectric Material
  • Polypropylene (PP), Metallized
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • PMB
  • Published
  • 2006
  • Size / Dimension
  • 1.673Lx1.299W 42.50mmx33.00mm
  • Tolerance
  • ±10%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Screw Terminals
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Applications
  • DC Link, DC Filtering; High Frequency, Switching; Snubber
  • Additional Feature
  • RATED AC VOLTAGE (V): 450
  • HTS Code
  • 8532.25.00.80
  • Capacitance
  • 2.5?F
  • Voltage - Rated AC
  • 450V
  • Lead Pitch
  • 31.496mm
  • Capacitor Type
  • FILM CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 1.9mOhm
  • Lead Spacing
  • 1.240 31.50mm
  • Height Seated (Max)
  • 1.772 45.00mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Illinois Capacitor 255PMB850KSP0.

Datasheets:

Environmental Information:

255PMB850KSP0 Overview


In this device, the ESR (Equivalent Series Resistance) is 1.9mOhm.Its lead spacing is 1.240 31.50mm.Temperatures of -40°C~85°C allow the device to operate.

255PMB850KSP0 Features


1.9mOhm equivalent series resistance (ESR)


255PMB850KSP0 Applications


There are a lot of Illinois Capacitor
255PMB850KSP0 applications of film capacitors.


  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
