APEM 25139NAH
APEM 25139NAH

APEM 25139NAH

Manufacturer No:

25139NAH

Manufacturer:

APEM

Package:

125

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

25139NAH information

APEM 25139NAH technical specifications, attributes, parameters and parts with similar specifications to APEM 25139NAH.

  • Type
  • Parameter
  • Factory Lead Time
  • 5 Weeks
  • Contact Material
  • Silver (Ag)
  • Contact Plating
  • Silver
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • 125
  • Insulation Material
  • THERMOPLASTIC
  • Housing Material
  • GLASS FILLED NYLON
  • Actuator Material
  • Polyamide (PA), Nylon, Glass Filled
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • 25000N
  • Feature
  • Epoxy Sealed Terminals
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • PC Pin
  • ECCN Code
  • EAR99
  • Number of Positions
  • 2
  • Voltage - Rated DC
  • 30V
  • Current Rating (Amps)
  • 4A AC 1A DC
  • Orientation
  • Vertical
  • Current Rating
  • 1A
  • Termination Style
  • PC Pin
  • Voltage - Rated AC
  • 125V
  • Body Breadth
  • 7.493 mm
  • Actuator Type
  • Standard
  • Circuit
  • SPDT
  • Switch Function
  • On-Off-On
  • Contact Resistance
  • 10mOhm
  • Insulation Resistance
  • 1000000000Ohm
  • Contact Current(DC)-Max
  • 3A
  • Max Voltage Rating (AC)
  • 250V
  • Dielectric Withstanding Voltage
  • 1000VRMS V
  • Electrical Life
  • 10,000 Cycles
  • Max Voltage Rating (DC)
  • 30V
  • Mechanical Life
  • 20,000 Cycles
  • Contact Current Rating
  • 4A
  • Illumination Type
  • Non-Illuminated
  • Contact Current(AC)-Max
  • 2A
  • Contact (AC) Max Rating R Load
  • 2A@250VAC
  • Contact Timing
  • Not Specified
  • Contact (DC) Max Rating R Load
  • 3A@30VDC
  • PCB Hole Count
  • 3
  • Switch Travel
  • 4.00mm
  • Solderability
  • WAVE
  • Washability
  • PARTIAL
  • Body Height
  • 14.7066mm

Download datasheets and manufacturer documentation for APEM 25139NAH.

Datasheets:

Environmental Information:

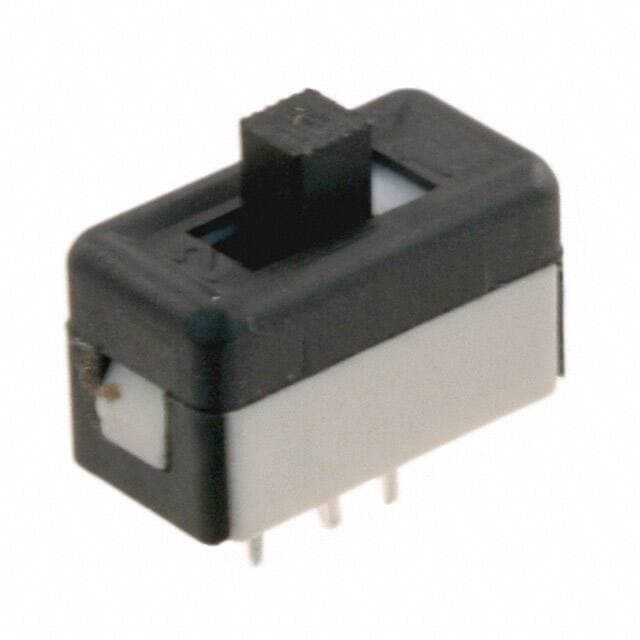

The APEM 25139NAH Slide Switch is a single-pole double-throw (SPDT) switch with an ON-OFF-ON configuration. It is designed for use in a variety of applications, including industrial, automotive, and consumer electronics. The switch features a top slide actuator, a 1A current rating, and a 30VDC voltage rating. It is constructed with PC pins and is designed for through-hole mounting. The switch is rated for up to 20,000 cycles of operation.

This switch is ideal for applications that require a reliable, long-lasting switch with a simple ON-OFF-ON configuration. It can be used in a variety of applications, including industrial control systems, automotive electronics, and consumer electronics. The switch is also suitable for use in applications that require a high number of cycles, such as gaming consoles and other devices that require frequent switching.
