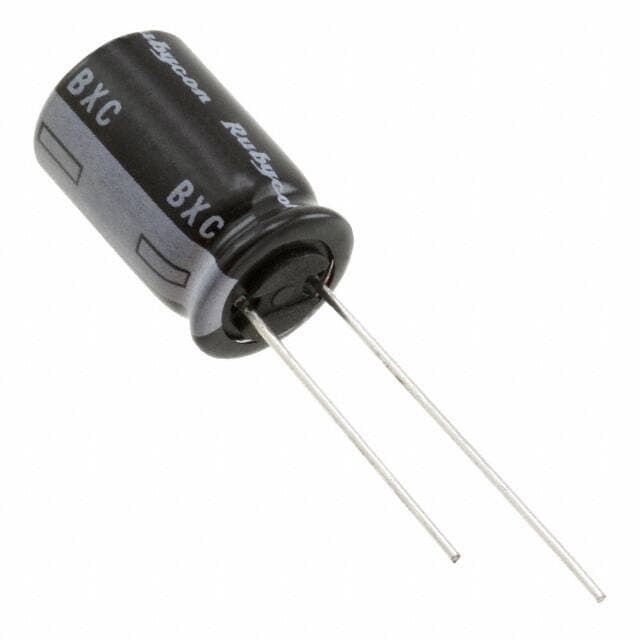

Rubycon 250BXC22MEFC10X16
Rubycon 250BXC22MEFC10X16

Rubycon 250BXC22MEFC10X16

Manufacturer No:

250BXC22MEFC10X16

Manufacturer:

Rubycon

Package:

Radial, Can

Description:

BXC 22?F Capacitor ±20% Bulk Through Hole 188mA 0.394Dia 10.00mm -25°C~105°C Polar 5.0038mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

250BXC22MEFC10X16 information

Rubycon 250BXC22MEFC10X16 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 250BXC22MEFC10X16.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Number of Pins
  • 2
  • Dielectric Material
  • ALUMINUM (WET)
  • Weight
  • 9.071847g
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Series
  • BXC
  • Published
  • 2011
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • Capacitance
  • 22?F
  • Voltage - Rated DC
  • 250V
  • Terminal Pitch
  • 5mm
  • Lead Pitch
  • 5.0038mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lifetime @ Temp
  • 10000 Hrs @ 105°C
  • Ripple Current
  • 188mA
  • Polarization
  • Polar
  • Life (Hours)
  • 10000 hours
  • Ripple Current @ Low Frequency
  • 188mA @ 120Hz
  • Ripple Current @ High Frequency
  • 470mA @ 100kHz
  • Diameter
  • 10mm
  • Height
  • 16mm
  • Height Seated (Max)
  • 0.709 18.00mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Rubycon 250BXC22MEFC10X16.

Datasheets:

250BXC22MEFC10X16 Overview


As far as the ripple current is concerned, it is 470mA @ 100kHz at full charge.As far as the ripple current is concerned, it is 188mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.709 18.00mm.This capacitor operates from a voltage - Rated DC of 250V.The operating temperature should be maintained at -25°C~105°C for high efficiency.

250BXC22MEFC10X16 Features


the ripple current is 470mA @ 100kHz.
the ripple current is 188mA @ 120Hz.
voltage - Rated DC of 250V
an operating temperature of -25°C~105°C


250BXC22MEFC10X16 Applications


There are a lot of Rubycon
250BXC22MEFC10X16 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
