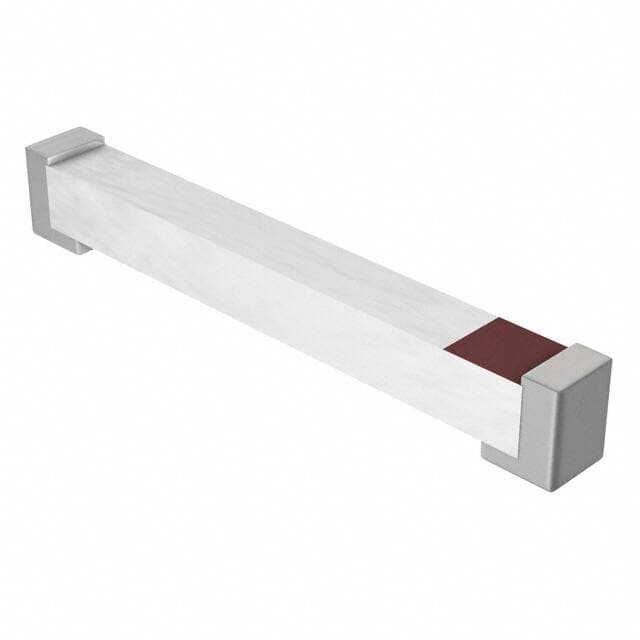

Johanson Technology Inc. 2500AT44M0400E

Manufacturer No:

2500AT44M0400E

Manufacturer:

Package:

Description:

3 Bands Chip UHF 2GHz~3GHz Surface Mount Solder 2.38GHz 2.4GHz 2.6GHz 2dBi, 2.5dBi, 2dBi Tape & Reel (TR) Bluetooth, Wi-Fi, WiMax?, WLAN, Zigbee?

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2500AT44M0400E information

Johanson Technology Inc. 2500AT44M0400E technical specifications, attributes, parameters and parts with similar specifications to Johanson Technology Inc. 2500AT44M0400E.

Type
Parameter

Factory Lead Time
11 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Packaging
Tape & Reel (TR)

Published
2009

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Applications
Bluetooth, Wi-Fi, WiMax?, WLAN, Zigbee?

Power Rating
3W

Construction
COMPONENT

Frequency
2.7GHz

Impedance
50Ohm

Gain
2dBi, 2.5dBi, 2dBi

Frequency Range
2.3GHz~2.7GHz

RF/Microwave Device Type
ANTENNA-OTHER

RF Family/Standard
802.15.4, Bluetooth, WiFi

Antenna Type
Chip

Number of Bands
3

Frequency (Center/Band)
2.38GHz 2.4GHz 2.6GHz

Return Loss
-9.5dB

Height
990.6?m

Length
8mm

Width
1mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Johanson Technology Inc. 2500AT44M0400E.

Datasheets:

johansontechnologyinc-2500at44m0400e-datasheets-9937.pdf

2500AT44M0400E Overview

The Surface Mount makes it ideal for general RF Antennas.Packaged in solid enclosures, this RF modulator has a Tape & Reel (TR) rating.Having a Surface Mount makes it suitable for most RF ic designs.It is estimated that the RF Antennas will operate at least at -40°C according to test statistics.In an environment with a temperature higher than 85°C, the RF Antennas should not operate.

2500AT44M0400E Features

With Surface Mount
Above 85°C degrees Celsius

2500AT44M0400E Applications

There are a lot of Johanson Technology Inc.
2500AT44M0400E RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
