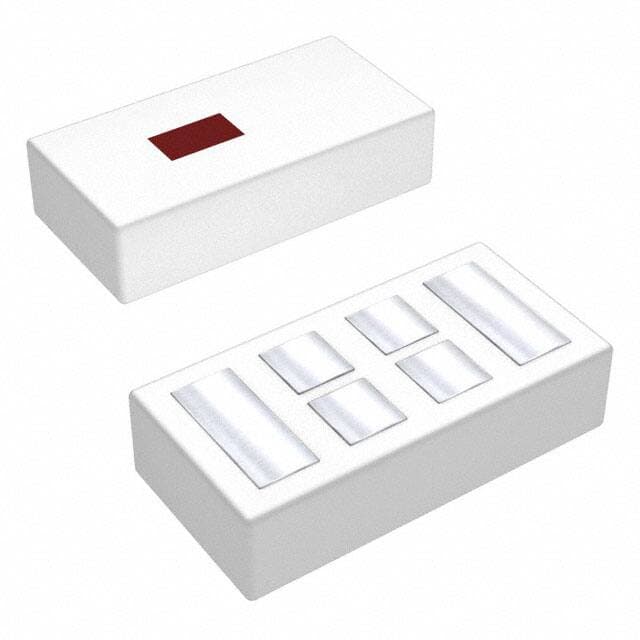

Johanson Technology Inc. 2450AD14A5500T

Manufacturer No:

2450AD14A5500T

Manufacturer:

Johanson Technology Inc.

Package:

Description:

2 Bands Chip UHF 2GHz~3GHz SHF f > 4GHz Surface Mount Solder 2.4GHz 5.5GHz 4dBi Tape & Reel (TR) 0.016 0.40mm WLAN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2450AD14A5500T information

Johanson Technology Inc. 2450AD14A5500T technical specifications, attributes, parameters and parts with similar specifications to Johanson Technology Inc. 2450AD14A5500T.

Type
Parameter

Mounting Type
Surface Mount

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Applications
WLAN

Power - Max
2W

Gain
4dBi

Frequency Range
2.4GHz~2.48GHz 5.15GHz~5.85GHz

RF Family/Standard
WiFi

Antenna Type
Chip

Number of Bands
2

Frequency Group
UHF 2GHz~3GHz SHF f > 4GHz

Frequency (Center/Band)
2.4GHz 5.5GHz

Return Loss
-6dB

Height (Max)
0.016 0.40mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Johanson Technology Inc. 2450AD14A5500T.

Datasheets:

johansontechnologyinc-2450ad14a5500t-datasheets-2860.pdf

2450AD14A5500T Overview

It is suitable for general RF Antennas when it is set to Surface Mount.Tape & Reel (TR) is the solid enclosure in which RF modulator is packaged.

2450AD14A5500T Features

With Surface Mount

2450AD14A5500T Applications

There are a lot of Johanson Technology Inc.
2450AD14A5500T RF Antennas applications.

Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
