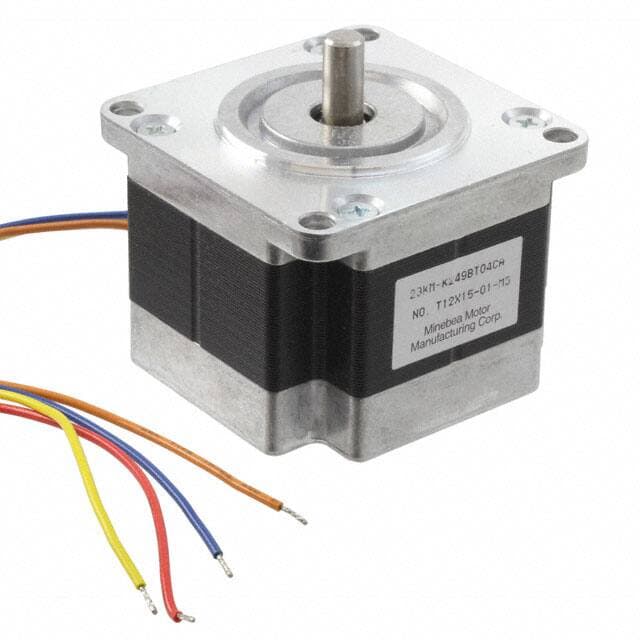

NMB Technologies Corporation 23KM-K249BT04CA
NMB Technologies Corporation 23KM-K249BT04CA

NMB Technologies Corporation 23KM-K249BT04CA

Manufacturer No:

23KM-K249BT04CA

Manufacturer:

NMB Technologies Corporation

Package:

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

23KM-K249BT04CA information

NMB Technologies Corporation 23KM-K249BT04CA technical specifications, attributes, parameters and parts with similar specifications to NMB Technologies Corporation 23KM-K249BT04CA.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Weight
  • 1.1lbs 499g
  • Mounting Hole Spacing
  • 1.856 (47.14mm)
  • Series
  • 23KM
  • Published
  • 2008
  • Size / Dimension
  • Square - 2.220 x 2.220 56.40mmx56.40mm
  • Feature
  • Flatted Shaft
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Wire Leads
  • Type
  • Hybrid
  • Voltage - Rated
  • 24VDC
  • Termination Style
  • Wire Leads
  • Accuracy
  • ±5%
  • Coil Resistance
  • 2.4Ohm
  • Coil Type
  • Bipolar
  • Step Angle
  • 1.8°
  • Steps per Revolution
  • 200
  • Torque - Holding (oz-in / mNm)
  • 76.5 / 540
  • NEMA Frame Size
  • 23
  • Diameter - Shaft
  • 0.315 (8.00mm)
  • Length - Shaft and Bearing
  • 0.551 14.00mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NMB Technologies Corporation 23KM-K249BT04CA.

Datasheets:

No product details available
