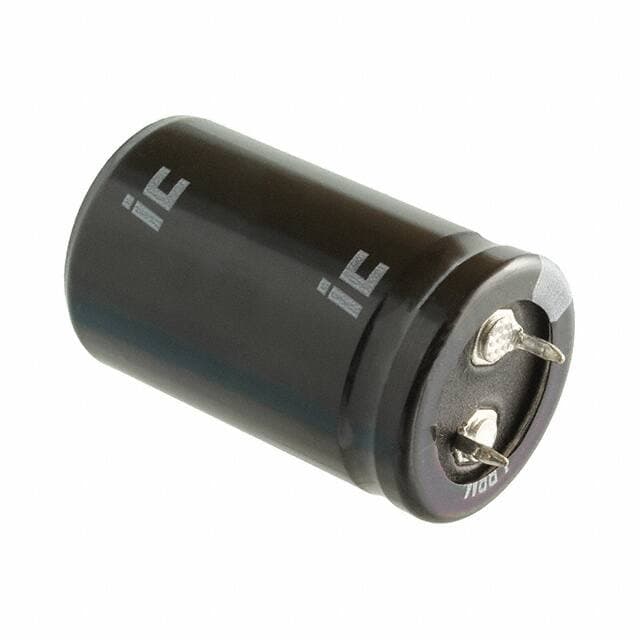

Illinois Capacitor 227LBB450M2DE
Illinois Capacitor 227LBB450M2DE

Illinois Capacitor 227LBB450M2DE

Manufacturer No:

227LBB450M2DE

Manufacturer:

Illinois Capacitor

Package:

Radial, Can - Snap-In

Description:

LBB 220?F Capacitor ±20% Bulk Through Hole 1.72A 1.181Dia 30.00mm -40°C~85°C Polar 10.0076mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

227LBB450M2DE information

Illinois Capacitor 227LBB450M2DE technical specifications, attributes, parameters and parts with similar specifications to Illinois Capacitor 227LBB450M2DE.

  • Type
  • Parameter
  • Factory Lead Time
  • 22 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • LBB
  • Published
  • 2012
  • Size / Dimension
  • 1.181Dia 30.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 220?F
  • Voltage - Rated DC
  • 450V
  • Lead Pitch
  • 10.0076mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 1.13036Ohm @ 120Hz
  • Lifetime @ Temp
  • 3000 Hrs @ 85°C
  • Leakage Current
  • 3mA
  • Ripple Current
  • 1.72A
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Tan Delta
  • 0.15
  • Ripple Current @ Low Frequency
  • 1.72A @ 120Hz
  • Ripple Current @ High Frequency
  • 2.5284A @ 10kHz
  • Diameter
  • 30mm
  • Height
  • 35mm
  • Height Seated (Max)
  • 1.457 37.00mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Illinois Capacitor 227LBB450M2DE.

Datasheets:

Environmental Information:

227LBB450M2DE Overview


Full charge results in a ripple current of 2.5284A @ 10kHz.1.13036Ohm @ 120Hz must have the ESR (Equivalent Series Resistance) to function properly.The ripple current at the lowest charge is 1.72A @ 120Hz.Keeping the maximum height of the seated person (Max) below 1.457 37.00mm is recommended.Rated DC voltage is 450V for this capacitor.High efficiency requires an operating temperature of -40°C~85°C.

227LBB450M2DE Features


the ripple current is 2.5284A @ 10kHz.
the ripple current is 1.72A @ 120Hz.
voltage - Rated DC of 450V
an operating temperature of -40°C~85°C


227LBB450M2DE Applications


There are a lot of Illinois Capacitor
227LBB450M2DE applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
