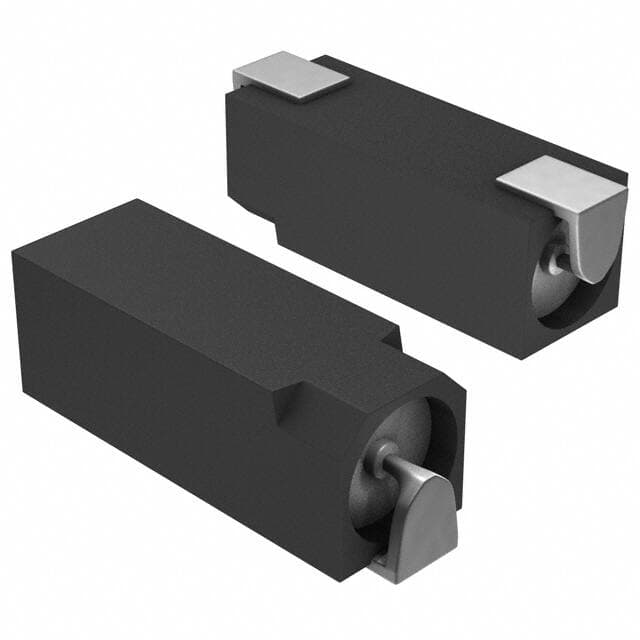

VISHAY 2222 085 63229

Manufacturer No:

2222 085 63229

Manufacturer:

VISHAY

Package:

Nonstandard SMD

Description:

085 CS 22?F Capacitor ±20% Tape & Reel (TR) Surface Mount 0.469Lx0.146W 11.90mmx3.70mm -40°C~85°C Nonstandard SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2222 085 63229 information

VISHAY 2222 085 63229 technical specifications, attributes, parameters and parts with similar specifications to VISHAY 2222 085 63229.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
Nonstandard SMD

Surface Mount Land Size
0.469Lx0.146W 11.90mmx3.70mm

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
085 CS

Published
2009

Size / Dimension
0.469Lx0.146W 11.90mmx3.70mm

Tolerance
±20%

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
General Purpose

Voltage - Rated
6.3V

Capacitance
22?F

ESR (Equivalent Series Resistance)
22Ohm

Lifetime @ Temp
1500 Hrs @ 85°C

Impedance
9Ohms

Ripple Current @ High Frequency
30mA @ 10kHz

Height Seated (Max)
0.154 3.90mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY 2222 085 63229.

Datasheets:

vishaybccomponents-222208563229-datasheets-3199.pdf

2222 085 63229 Overview

Full charge should result in a ripple current of 30mA @ 10kHz.To fully perform its function, 22Ohm needs the equivalent series resistance.Keep your seated height below 0.154 3.90mm.The maximum efficiency can be achieved by maintaining -40°C~85°C as the operating temperature.

2222 085 63229 Features

the ripple current is 30mA @ 10kHz.
an operating temperature of -40°C~85°C

2222 085 63229 Applications

There are a lot of Vishay BC Components
2222 085 63229 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
