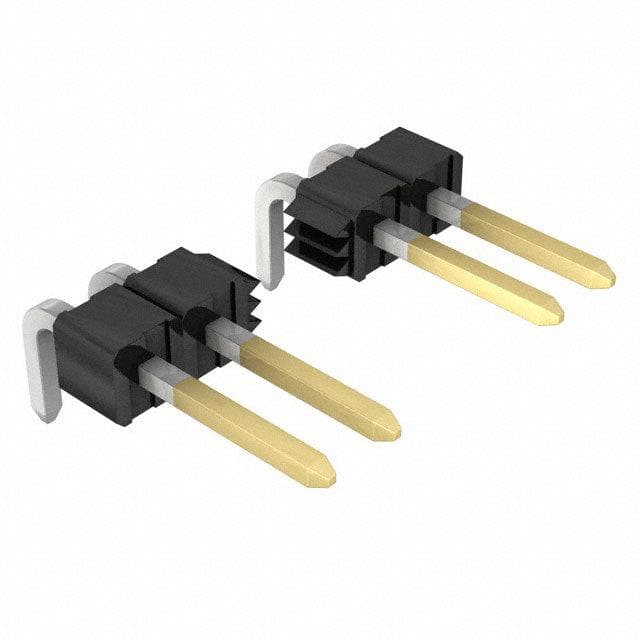

MOLEX 22-28-8265
Manufacturer No:
22-28-8265
Manufacturer:
Package:
Description:
1-Row Male Pin Solder Bronze Bulk
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
22-28-8265 information
MOLEX 22-28-8265 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 22-28-8265.
| Type | Parameter |
|---|---|
| Factory Lead Time | 9 Weeks |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Mount | Through Hole |
| Housing Material | Nylon |
| Packaging | Bulk |
| Published | 2007 |
| JESD-609 Code | e3 |
| Pbfree Code | yes |
| Termination | Solder |
| Connector Type | Male Pin |
| Color | Black |
| Number of Rows | 1 |
| Gender | Male |
| Voltage - Rated | 250V |
| Additional Feature | MATING LENGTH=0.324 INCHES |
| Subcategory | Headers and Edge Type Connectors |
| MIL Conformance | NO |
| DIN Conformance | NO |
| IEC Conformance | NO |
| Filter Feature | NO |
| Mixed Contacts | NO |
| Option | GENERAL PURPOSE |
| Pitch | 2.54mm |
| Type | Parameter |
|---|---|
| Current Rating | 4A |
| Number of Conductors | ONE |
| Reference Standard | UL, CSA |
| Reliability | COMMERCIAL |
| Body Length or Diameter | 2.6 inch |
| Number Of PCB Rows | 1 |
| Number of Contacts | 26 |
| Contact Length - Mating | 8.2296mm |
| PCB Contact Pattern | RECTANGULAR |
| Operating Temperature (Max) | 75°C |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Body Breadth | 0.098 inch |
| UL Flammability Code | 94V-0 |
| Rated Current (Signal) | 4A |
| Contact Style | SQ PIN-SKT |
| Contact Resistance | 20mOhm |
| Insulation Resistance | 50000000000Ohm |
| Body/Shell Style | RECEPTACLE |
| Polarization Key | POLAR PIN POSITION |
| Durability | 25 Cycles |
| Contact Pattern | RECTANGULAR |
| Plating Thickness | 30μin |
| RoHS Status | RoHS Compliant |
