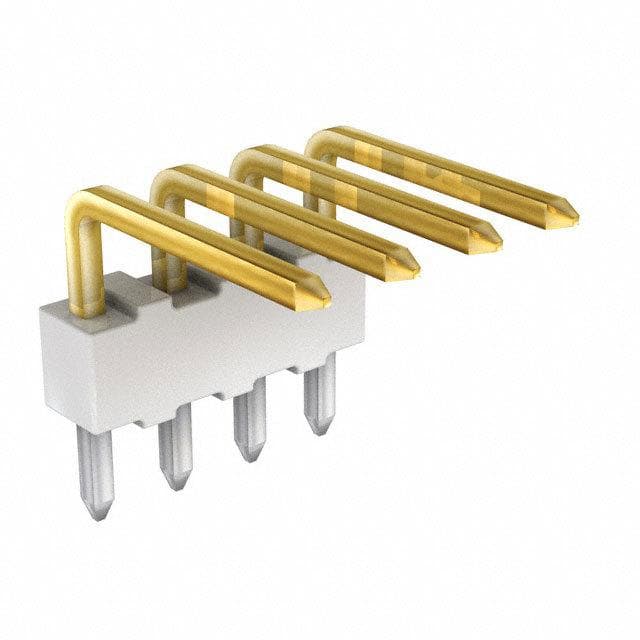

MOLEX 22-12-2041
Manufacturer No:
22-12-2041
Manufacturer:
Package:
Description:
1-Row Male Pin Solder Brass Bulk 4-Position
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
22-12-2041 information
MOLEX 22-12-2041 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 22-12-2041.
Type | Parameter |
---|---|
Factory Lead Time | 8 Weeks |
Contact Material | Brass |
Contact Plating | Gold |
Mount | Through Hole |
Housing Material | Nylon |
Packaging | Bulk |
Published | 2009 |
Pbfree Code | yes |
Part Status | Active |
Termination | Solder |
ECCN Code | EAR99 |
Connector Type | Male Pin |
Number of Positions | 4 |
Max Operating Temperature | 75°C |
Min Operating Temperature | 0°C |
Color | White |
Number of Rows | 1 |
Additional Feature | KK |
Subcategory | Headers and Edge Type Connectors |
Voltage - Rated DC | 250V |
MIL Conformance | NO |
DIN Conformance | NO |
IEC Conformance | NO |
Filter Feature | NO |
Type | Parameter |
---|---|
Option | GENERAL PURPOSE |
Pitch | 2.54mm |
Total Number of Contacts | 4 |
Orientation | Right Angle |
Current Rating | 4A |
Number of Conductors | ONE |
Reference Standard | UL, CSA |
Reliability | COMMERCIAL |
Body Length or Diameter | 0.39 inch |
Number Of PCB Rows | 1 |
Lead Pitch | 2.54mm |
Contact Length - Mating | 9.3726mm |
PCB Contact Pattern | RECTANGULAR |
Mating Information | MULTIPLE MATING PARTS AVAILABLE |
Contact Gender | Male |
Body Depth | 0.092 inch |
Rated Current (Signal) | 4A |
Contact Style | SQ PIN-SKT |
Contact Resistance | 10mOhm |
Insulation Resistance | 50000000000Ohm |
Body/Shell Style | RECEPTACLE |
Durability | 25 Cycles |
Contact Pattern | RECTANGULAR |
