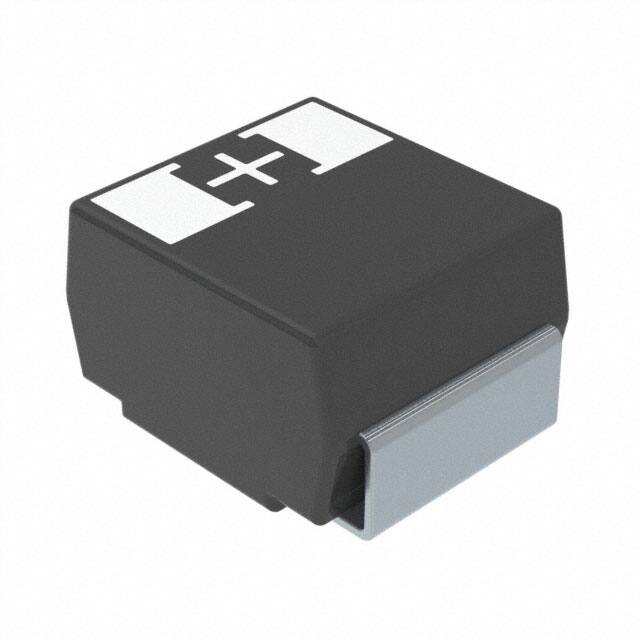

PANASONIC 20TDC22MYFB

Manufacturer No:

20TDC22MYFB

Manufacturer:

PANASONIC

Package:

, 1411

Description:

Tantalum Capacitor, Tantalum (solid Polymer),

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

20TDC22MYFB information

PANASONIC 20TDC22MYFB technical specifications, attributes, parameters and parts with similar specifications to PANASONIC 20TDC22MYFB.

Type
Parameter

Part Life Cycle Code
Active

Ihs Manufacturer
PANASONIC CORP

Package Description
, 1411

Reach Compliance Code
unknown

ECCN Code
EAR99

HTS Code
8532.21.00.50

Factory Lead Time
22 Weeks

Samacsys Manufacturer
Panasonic

Additional Feature
ESR IS MEASURED AT 100KHZ, RIPPLE CURRENT IS MEASURED AT 100KHZ AND 105CEL

Capacitance
22 µF

Capacitor Type
TANTALUM CAPACITOR

Dielectric Material
TANTALUM (SOLID POLYMER)

ESR
90 mΩ

Height
1.9 mm

Leakage Current
0.132 mA

Length
3.5 mm

Mounting Feature
SURFACE MOUNT

Negative Tolerance
20%

Number of Terminals
2

Operating Temperature-Max
125 °C

Operating Temperature-Min
-55 °C

Package Style
SMT

Packing Method
TR, EMBOSSED, 7 INCH

Polarity
POLARIZED

Rated (DC) Voltage (URdc)
20 V

Ripple Current
1000 mA

Size Code
1411

Surface Mount
YES

Tan Delta
0.1

Terminal Shape
J BEND

Width
2.8 mm

Download datasheets and manufacturer documentation for PANASONIC 20TDC22MYFB.

Datasheets:

PANA-S-A0020739491-1.pdf

20TDC22MYFB Overview

A high efficiency is achieved by maintaining the ESR (Equivalent Series Resistance) at 90mOhm @ 100kHz.The capacitance is 22?F when it operates.Voltage - Rated AC is -55°C~125°CV.High efficiency is enabled by the voltage rating of 20V.In addition to its 0.079 2.00mm°C maximum seated height, it is capable of providing stable operation.

20TDC22MYFB Features

a 90mOhm @ 100kHz ESR (Equivalent Series Resistance)
with a capacitance of 22?F
an AC voltage of -55°C~125°C
the voltage rating of 20V

20TDC22MYFB Applications

There are a lot of Panasonic Electronic Components
20TDC22MYFB applications of tantalum polymer capacitors.

Smart phone
Tablets
Notebook
LCD TV
Power supplies
